1. Introduction

A great deal of effort has been made, especially in the last decade to improve systems for converting solar energy into heat and particularly for electricity production. Parabolic trough reflector technology is the most common and is currently used by the most powerful solar power plants in the world and improving the efficiency of these concentrators is the concern of several researchers. The PTC offers the possibility to produce electricity and hot water from solar energy. The temperature of the fluid can be raised up to 500 ^◦ C. The operating principle of this technology is based on the concentration of the sun’s rays on a horizontal tube, where a heat transfer fluid circulates that will be used to transport the heat to the power plant itself. The parabolic-cylindrical collector is composed of a long mirror (usually with silver or polished aluminum plating), rectangular, parabolic cylinder shape and completed by a tube with a double vacuum envelope that runs along the entire length of the focal length line. The sun’s rays are reflected by the mirror to converge on the tube. The absorber tube is the essential part of the concentrator, it is often made of copper covered with a selective layer, and it is surrounded by a transparent glass envelope. The parabolic shape of the mirrors allows the sun’s rays to be concentrated throughout the tube. By circulating the heat-transfer fluid in the center of this tube, the fluid is heated and conducts the heat to the container with a determined flow rate. As with any concentrating collector, parabolic troughs need to follow the sun in order to concentrate direct solar radiation. As a line concentration collector, the parabolic cylinder has a single axis tracking system. Schematic of the solar PTC system with receiver is presented in Figure 1. Several studies have been conducted by researchers to improve the energy efficiency of parabolic trough systems. Cheng et al [1] examined the temperature distribution at the outer surface of the absorber tube of a CCP as a function of the surface radiation flux distribution using the Monte Carlo MCRT method. The authors have combined the MCRT method and the finite volume method via the Fluent ANSYS calculation code, elaborating a multitude of simulations and taking into account the dependence of the physical properties of the heat transfer fluid (Sylitherm 800 oil) with temperature. The results obtained were compared with previous experimental data [2] and it was noticed that there was a 2% difference in the temperature of the heat transfer fluid (HTF) at the absorber outlet. In addition, Kaloudiset al [3] performed a numerical study on the collector of a parabolic-cylinder concentrator system with nano heat transfer fluid, in order to simulate the SEGS LS2 type collector. The authors used four cases of boundary conditions for numerical simulation involving all heat transfer modes at the different tube interfaces.

Figure 1: Schematic of the PTC system with receiver [4]

Besides, In [5], the authors have investigated the energy performance of a PTC solar in the climatic conditions of the Algerian Sahara. The authors performed a simple numerical simulation of the one-dimensional implicit finite difference method applied to the energy balance of solar collectors by dividing the absorber tube, the glass cover and the fluid in many segments. Both fluids were used, water and synthetic oil TherminolVP-1 in the simulation. However, simulation results showed that the thermal efficiency is approximately 69.73 and 72.24%, which decreases at higher temperatures of synthetic oil-based fluids but increases by 2% at lower water temperatures. Bellos et al [6] have studied three different types of parabolic cylindrical collectors (vacuum tube receptor, non-vacuum tube receptor and bare tube without cover) to improve the thermal margin with the implementation (Syltherm 800/Cu) in a systematic manner. The use of nanofluids improved performance in the bare tube with 7.16%, 4.87% for the non-evacuated receptor and 4.06% for the evacuated receptor at a flow-rate of 25 L/min. Zhao et al [7] have examinated the global performance of the PTC solar using three different tubes (one smooth and two internally finned tubes), the authors characterized the solar collector performance by energy efficiency, exergy efficiency and thermo-hydraulic efficiency. The results obtained showed that the output temperature of the solar air collectors depends on the solar irradiation, the air flow rate and the geometry parameters of the spindle fin. IPF#2 tubes have the highest collector efficiency and air temperature, while the STube without using pin fins has the lowest values.

In Morocco, the solar plan is part of the national energy strategy which aims at quantitatively assessing the level of security of a secure and sustainable, clean, green and accessible energy provision [8]. The idea is, therefore, to study the energy efficiency of a parabolic trough solar collector and the thermal behavior of an absorber tube to improve their efficiency. The simulation is divided into two steps, the first part includes the simulation using the TRNSYS software [9], on the entire cylindro-parabolic system whose aim is to control this system and especially its operation in Saharan environment, in order to provide hot water in collective buildings [10], and taking into account the specific climatic effects in the Errachidia city (South of Morocco). In the second part, we numerically investigate using a developed Matlab code the geometrical effect of absorber tubes in order to improve the energy efficiency of a parabolic trough solar collector.

2. Theoretical study

2.1. Optical performance of PTC

2.1.1. Concentration rate

The concentration rate is defined as the ratio of the opening surface to the receiver surface[11, 12].

S _O S _r

                                                    C =         _____                                         (1)

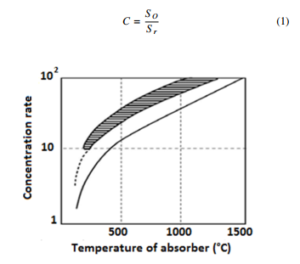

Figure 2: Concentration rate as function of the receiver temperature[11]

Figure 2 shows the variation in concentration rate as a function of absorber temperature.

• Low concentration: 1 < C < 10 involved T_C ≈ 150 ^◦C
• Average concentration: 10 < C < 100 involved T_C ≈ 1000 ^◦C
• High concentration:

C > 100 involved T_C > 1000 ^◦C

2.1.2     Radiation absorption

The radiation absorption is defined as follows [12]:

2.2. Thermal performance study of PTC

The thermal performance of PTC can be determined from different methods. The power received of PTC (Q_u) is determined from the quantities (F_R) and (U_L)[12].

2.2.1 Overall heat loss factor U_L (covered tube)

In the event that the tube receiver is covered by a glass selective surface (S_C), the irradiation coefficient in the glass to absorber region is dissimilar from the irradiation coefficient in the absorber to glass region, this coefficient is usually negligible [10]. The coefficient of heat loss is expressed by relationship:

                                              mf .Cp                        Sr.U .F

2.2.2. Useful heat (Q_u)

The useful heat is determined from the power recovered by the PTC at the focal line and it is expressed by the following relationship:

2.2.3. The outlet temperature T_out of HTF

The output temperature of HTF is determined from the following equation [13]:

2.2.4    Solar concentrator efficiency η

The efficiency of the PTC is given by the following relationship

[14].

3. Numerical simulation

3.1. TRNSYS model

To evaluate the thermal efficiency of a solar PTC, we used the TRNSYS software. It allows users to specify the system components and to connect these components together. Each component (type) contains input and output parameters.

In the present study, a new numerical model is developed using the Matlab language to simulate the temperature evolution in the fluid, absorber and glass cover. Concerning the simulation by TRNSYS software, we used the different components such as a parabolic cylindrical collector (type 536) and a pump (type 3d). Other components used: weather (type 109), regulation (type 2b) ON/OFF differential controller, storage tank (type 4c) and online plotter (type 65a). The schematic of the TRNSYS model of the PTC system takes into account water as HTF in the weather conditions of Errachidia city, it is presented in Figure 3.

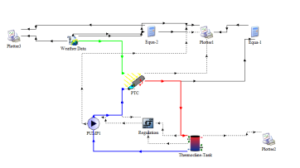

Figure 3: TRNSYS model of a solar PTC with Thermocline- Tank

3.2. Weather data of Errachidia city

Morocco’s energy efficiency agency has proposed a new classification of climatic zones, each having different meteorological properties. In addition, the wind speed, ambient temperature, and total radiation on the inclined surface of the city under study are generated by the METEONORM software. According to this study’s aims, which focuses on the thermal efficiency of a PTC tube for the Errachidia site. Geographical localization of Errachidia city (semi-arid climate) offers the ideal climatic conditions such as intense sunshine all year round, low humidity and precipitation. The ambient temperature variation all year round in the selected zone is shown in Figure 4. Besides, the estimation of the direct normal irradiation (DNI) throughout the year is shown in Figure 5. The evolution of the annual inlet and outlet temperature of the water is illustrated in Figure 6.

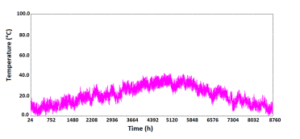

Figure 4: Ambient temperature evolution during one year at the Errachidia site

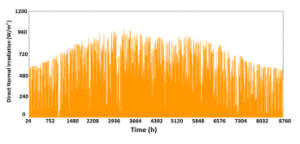

Figure 5: Annual direct normal irradiation in Errachidia city

Figure 6: Variation of water inlet and outlet temperature for one year at Errachidia city

4. Results and discussion

The estimation of the amount solar radiation captured by the PTC is based on the method employed by [15]. For modelling the thermal behavior of PTC components in transient regime, we have taken into account the following assumptions :

• The sky is assumed to be a blackbody;
• Under climatic conditions, the physical properties of the glass and the absorber are supposed constant;
• Fluid velocity is supposed to be constant;
• The wind speed is 3.75 m/s;
• The physical properties of the fluid in the absorber are assumed to be temperature dependent;
• The air enclosed between the absorber and the glass is stagnant and transparent.

4.1. Geometrical and optical parameters of PTC

The main element of PTC system which allows receiving incident solar radiation is the absorber, also it allows to convert radiation in the form of heat and transmit it to the HTF. The incident solar radiation is not entirely absorbed and transmitted to the HTF, but part is dissipated as heat loss between the absorber and the cover glass. Figure 7 illustrates heat transfer of the absorber used, taking into consideration the different shares of energy, which were collected by the fluid and lost to the environment.

Figure 7: Thermal exchanges between the absorber tube and the other components of PTC

Tables 1 and 2 present the geometric and optical properties of the components of our PTC system. The physical properties of HTF (water) are shown in Table 3. The water temperature and the PTC components calculated from the energy balance [16], for the typical days of the year and for a HTF mass flow rate value of 0.0083 kg/s.

Table 1: Geometrical characteristics of the PTC elements

Geometric characteristics	Value
External diameter of the absorber, De	1.4 cm
Internal diameter of the glass cover, D(c,i)	4.2 cm
External diameter of the glass cover, D(c,e)	4.35 cm
Effective width of the mirror, Wef f	1 m
Element length, ∆z	0.1 m
Collector absorber tube length, Ltube	2 m
Focal distance	0.235m

Table 2: Optical properties of materials used

Properties	Value
Absorption coefficient of the absorber tube, α	0.8
Glass transmission coefficient, τ	0.8
Reflectance of the mirror surface, ρm	0.85
Emissivity of the absorber tube, εr	0.12
Emissivity of the glass cover tube , εc	0.9

The thermal modelling of the absorber receiver of PTC is done by a calculation and programming procedure under Matlab by solving the energy balance equation. For this purpose, we have developed a calculation program to simulate the fluid temperature at the absorber outlet. The thermal model takes into account all heat transfers: convection in the receiver pipe, in the gap between the absorber and the glass cover, on the one hand, and between the glass cover and the ambient air, on the other hand. The thermal balance equation between the absorber and the HTF can be written :

The initial conditions and limits are given by following relationships:

T1(z,0) = Tamb(0)	(12)
T1(0,t) = Te(t)	(13)

where T_e is the inlet temperature and T_amb is the ambient temperature.

Table 3: Properties of heat fluid (water)

Properties	Value
Heat capacity, Cf	4180 kJ.kg−1.K−1
Volume flow rate, Df	30 l/h

Table 4: Comparison of parameter effects on PTC in the present study with other similar works.

Dimension of PTC	Mass flow rate Kg/s	Temperature of water	References
1 m x 2 m	0.0083	149 ◦C	Present study
1.25 m x 0.8 m	0.0117 – 0.0167	36.5 ◦C	[16]
1.49 m x 1.49 m	0.00111	104 ◦C	[17]
1.2 m x 1.5 m	0.0017	65 ◦C	[18]
1.82 m x 1.03 m	0.00111	50 ◦C	[19]
6 m x 2.3 m	0.55	165 ◦C	[20]
7.8 m x 5 m	0.345	47.24 ◦C	[21]

In order to produce hot water 90^◦C, for domestic and industrial applications. We have choose the right mass flow and the good PTC dimensions. Table 4 presents a comparison of parameter effects on PTC in the present study with other similar works. We noticed that when the mass flow rate and the opening radius of the collector increases the outlet temperature of the hot water rises. To produce a sufficient quantity of hot water, it is necessary to select parabolic cylindrical collector dimensions in relation to the outlet temperature of the water and the mass flow rate (Table 5).

Table 5: Hot water production in 90^oC for different theoretical cases [22]

Dimension of PTC	Mass flow rate Kg/s	Quantity of hot water (L/day)
1.6 m x 1.8 m	0.0074	133.2
1.6 m x 3 m	0.0123	221.4
1.6 m x 6 m	0.0250	450.0
1.6 m x 10 m	0.0411	739.8
1.6 m x 15 m	0.0633	1139.4

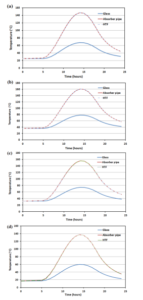

Figure 8: Outlet temperature evolution of fluid, absorber and glass for; (a) March 21,

(b) June 21, (c) September 21 and (d) December 21

4.2. Temperature outlet evolution in typical days of year

Figure 8 shows the temperature evolution of the fluid, the absorber and the glass cover versus the time from March 21, June 21, September 21 and December 21, 2019 for the concentrator whose geometric properties are given in Table 1. We observed that the temperature variation depends on the climatic conditions of Errachidia, particularly on the incident solar energy.

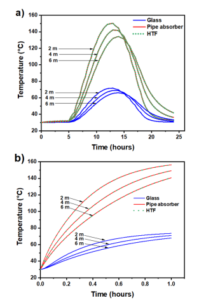

Figure 9: (a) Outlet temperature evolution of the glass, absorber and HTF for; 2 m, 4 m and 6 m of the length tube, (b) PTC temperature – stagnation conditions.

4.3. Absorber tube length effect

The thermal performance of PTC and the water heating requirements depend on the geometric properties of PTC solar. In the modeling we have chosen 3 different absorber lengths 2m, 4m and 6m, respectively. Excluding stagnation, we observe that the risk of overheating at the PTC level does not exist, the temperature of the absorber tube stays below 70^◦C using water as HTF. The daily variation of the fluid temperature, the absorber tube and the glass cover as a function of time is illustrated in Figure 9a. We noticed that when the receiver pipe length is small the efficiency of the system increases and the temperature of the absorber also increase. We observed that, in theory, the stagnation of the temperature of the absorber and fluid exceeds 158^◦C of water as HTF. The risk of deterioration of the system in the case of water HTF is important. We also observed that when the absorber tube length is small the temperature of the absorber also increases (Figure 9b).

4.4. Absorber tube thickness effect

Figure 10 shows the thickness effect of the receiver pipe on the fluid daily temperature, the receiver pipe and the glass cover versus of time for 1.5 mm, 2.5 mm and 3.5 mm respectively, for the concentrator whose geometric properties are given in Table 1. We observe that the thickness of the absorber has a small impact on the fluid temperature evolution and stagnation of the temperature compared to the tube length.

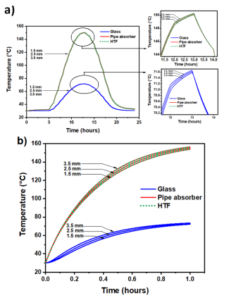

Figure 10: (a) Outlet temperature evolution of HTF, absorber and glass cover for different absorber tube thickness 1.5 mm, 2.5 mm and 3.5 mm; (b) PTC temperature stagnation conditions.

5. Conclusions

In this paper, the study of the water heating circulating in an absorber tube of a solar PTC is investigated. The heating process modeling of the fluid is performed. To verify the temperature of fluid, absorber and glass cover, a mathematical model is elaborated from the heat exchanges of the glass tube with the environment. The geometrical dimensions of the parabolic-cylindrical collector have been taken into account in the modeling. The results obtained in this study showed that there was a significant temperature difference between the inlet and the outlet of PTC for the test days considered. Excluding stagnation, the absorber tube length effect on the fluid temperature evolution was observed. However, the absorber tube thickness effect is very small on the temperature evolution. This investigation offers multiple perspectives on the use and analysis of parabolic-cylindrical collector behavior such as the optical performance evaluation of the system or to test other heat transfer fluids. Finally, an economic study can be envisaged to evaluate the cost-effectiveness of the system.

Nomenclature

Ta	Ambient temperature (◦C)
Tr	Absorber temperature
T¯	Average irradiation temperature
TC	Concentration temperature
Tc	Cover temperature (glass tube)
T1	Heat transfer fluid temperature
Cp	Calorific power
C1	Heat-transfer fluid specific heat
D1	Internal diameter of the absorber
Ep	Incident radiation on the map opening
E	Incident solar radiation (W/m2)
Tinl	Fluid inlet temperature
Tout	Fluid outlet temperature
Frc	Form factor between the receiver and the cover, which is equal to 1
hfi	Heat transfer coefficient at inside the absorber (W/(m2.◦C)
mf	Mass flow
S o	PTC opening area
S r	Receiver surface (m2 )
De,Di	Outside and inside diameter of the absorber
qg	Amount of the energy gained by the heat transfer fluid

Greek Symbols

γ	Optical collector factor
εr	Emissivity of the surface of the absorber
λ	Thermal conductivity (W/(m.◦C))
τ	Transmission factor
ρ	Reflection factor of the concentrator mirror
φ	Heat transfer fluid mass flow rate
ρ1	Heat transfer fluid density
εc	Glass emissivity of the cover
τα	Transmission-absorption coefficient

Physical constants

    σ                     Stefan-Boltzmann Constant (5.667.10⁻⁸W/m²K⁴)

Conflict of Interest

The authors declare no conflict of interest.
