1. Introduction

In the modern years, scientists and researchers have exposed their main concern in capturing the aquatic life beneath the water. Although the statement that 70% of the globe encloses water includes enormous energy, abundant mineral assets and biological resources. The living beneath the water is still not as much look at. Conversely, challenges related by capturing descriptions beneath the water have been complex to defeat, owing to carry-over haze and color cast. The muddy nature of water suitable to process element such as mineral deposits, sand and plankton, showed a huge difficulty in undersea look at region. These elements set up lack of clarity in undersea descriptions which spoils the clearness and ocular analysis of the picture and in turn, inappropriate for any advance use. Researchers have finished that the spreading and absorption property of beam underneath are the chief basis for this deformation [1]. While water is roughly 800 times denser than air, so when beam penetrate from air to water, it come across reflection fact at the surface owing to which only unfair measure of beam go through water.  Afterwards the beam undergoes spreading cause when it strikes and element and minerals suspend in water.  Scattering diverges the beam in dissimilar directions which diminish the measure of beam falling on the object captured underneath. The end effect of spreading outcome is that the undersea captured descriptions are dim in look [2]. A further problem is causal to lack of clarity of picture that the water molecules take up certain measure of beam when beam hit on them.  Because the mass of water is larger than air, it employs dissimilar absorption possessions for diverse beam wavelengths, so the color of undersea descriptions is typically deformed. Generally, red part vanishes first as of its highest wavelength, where blue beam, by small wavelength, convey the greatest path beneath water. Therefore, undersea descriptions are often dominated via blue color. In common, color cast and beam scattering reason deviate color along with contrast degradation into descriptions attained undersea as shown in Figure 1.

In contrast, our system uses dual phases specifically Adaptive Regularization for restoration and Hybrid technique intended for improving its quality. In this work we suggested for merging the thought mainly dictionary knowledge by structural cluster along with picture restoring functions.

Our advance establishes novel regularization to beat a superior stability among local and non-local strength. Generally, our algorithm interprets learning through local and non-local similarity give inference of each picture elements. The restored picture decomposes into dissimilar elements for signifying their basic depiction, later uses diverse development for every part individually along with hybrid technique introduced for rebuilding enhanced picture. The projected process is close towards or even slightly superior to the state-of-the-arts. Tentative results exposed that projected process extensively outperforms many important process in existing arts.

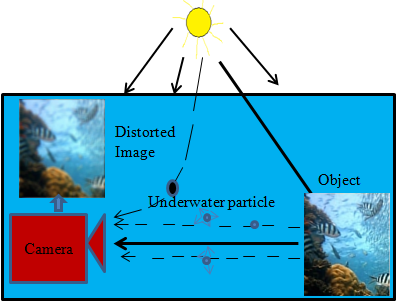

Figure 1: Underwater Imaging System

The summary of this work described as follow. Section 2 portray existing art. Section 3 projects hybrid technique using gradient guided filter for enhancing undersea descriptions. Section 4 illustrates numerical experiments. At last, Section 5 concludes this work.

2. Existing art

Enhancement system for undersea degradation typically explore the undersea optical form and balance bad possessions caused by water along with elements, or simply via undersea processing process for enhancing unclear imagery. State-of-arts are generally considered meant for single image enhancement, since multi-images may limit performance choice, slow down the processing speed. Instinctively, handling this concern well, undersea optical form must consider and investigated at first. Among different undersea imaging methods, the representation method [3], give a complete undersea optical form, within which beam transmission path, beam reduction relation of dissimilar color channel, vertical as well as horizontal deepness of undersea surroundings, non-natural beam possessions and etc are in use. This process is entirely with real form and meet outstanding for a few undersea problems, conversely, its evaluation procedure is difficult and time overwhelming, which is hard to meet, but it gives a full-scale study of undersea surroundings. Fusion-based method, which combines processing outcome by color correction system and histogram equalization method, it also makes a superior outcome for several submerged environments, though, it merely uses scheme of image processing as well as ignoring submarine features, hence ending results undergo more or less fog, data defeat as well as over-enhancement difficulty. To explain these problems well, both processes combined and projected a new method. Semi-inverse approach in [4] employed towards perceiving foggy region and then expected atmospheric rate in plain areas. At last, they meet enhanced picture using a simple weighted fusion.

For few picture, particularly scenes underneath, mist exposure using semi-inverse system will be unsuccessful suitable to the small dissimilarity among true and the inverse picture. This means if hazy region exposure not succeeds and obtains a bad performance. To solve this problem, a simple fusion-based dehazed method using a dissimilar descriptions also resultant from true picture [5], [6]. The primary picture estimate white balance process, and the next input picture through a simple linear change for enhancing contrast of hazy picture. At last, the pixel-fusion scheme uses three weight maps for combining that imagery for enhancing visibility of foggy picture also extended fusion-based scheme [7]. Fusion-based dehazed procedure is easy, speedy as well as meets alike result as the DCP scheme in [8] and [9]. But it is not succeeding when the picture includes inhomogeneous haze. The cause is that this process did not take into account the deepness data of a hazy picture. The dual descriptions attained by gamma correction by various scales for sandstorm enhancement [10]. The enhanced fusion-based approach using various descriptions uses single picture dehazed scheme in [11]. Fusion approach is new and efficient intended for single picture defogging. The primary picture is for enhancing dissimilarity; in addition, later picture mainly for compensating color deformation as well as decrease halo effect plus noise. While above techniques are fast as well as simple, they cannot make excellent picture. Amusingly, the multi-scale progression can be approximated with well-organized and visually satisfying single-scale process [12]. HR fusion in [13] has to be measured as a possible balance, useful to our process when high resolution is required.

The algorithm [14] are effective methods with low computational complexity also great performance, which stretch histograms of picture for improving the dynamic range compress the display area towards enhancing dissimilarity, but these methods often cause over-enhancement, amplify the noise and show poor effect on color correction. Owing towards the drawbacks of single image processing, some relatively complicated methods are proposed. Meanwhile, [15] proposes a retinex-based approach to deal with undersea issues, however, performance of this system is not distinct, color cast as well as contrast degradation still exist. The system may guess a uniform [16, 17] or an extra reasonable non-uniform [18] background-radiance. Enhancement technique eliminates the colour cast [19, 20] with overall white balancing.

This work is extensive to the effort primarily obtained through ICCIC [21]. Moreover, the projected work is for Enhancing Underwater Image in blurry conditions using hybrid technique. Revised outcome much improves lighting plus color cast trouble during submerged descriptions. Excellence process not essential to resolve substantial type of corrupted representation, other than fairly enhances dissimilarity also gets superior picture excellence as individual illustration view. Experimental results show good performance meant for underneath representation.

2.1.  Motivation

Underwater distorted descriptions typically to explore optical model also compensating bad effects caused by underwater element uses processing scheme to restore performance of distorted images. The state-of-arts are mostly designed for single-image enhancement, since multi-images may limit performance range and slow down processing speed. Towards handling this problem well, initially we considered Image re-establishment process.  The   physical   system   of   ocular   imaging,   reverse

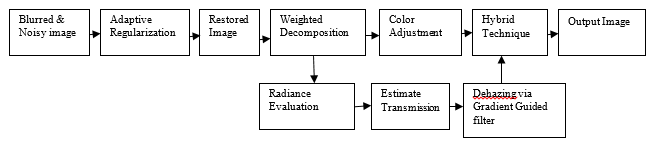

Figure 2: Block diagram of Proposed Method

degradation process and balance distortion to get clear imagery but it has small visibility and color cast problem.  Image enhancement process do not get the source of picture degradation into account, but mainly use targeted version to get better dissimilarity, detail, and ocular possessions. It provides complete undersea ocular form, where the illuminated transmission path, beam reduction of dissimilar color path taken into concern totally based on physical model and achieves excellent for some underwater backscatter issues. However, its evaluation development is difficult and time-consuming, but it gives full-scale analysis of undersea situation. To enhance dissimilarity, visibility, color spread of restored imagery, fusion-based model which boost picture by fusing several input imageries have received much attention.  The processing results by color constancy and dehazed algorithm, generates good results. However, it only uses technique of image processing and so its results suffer from more or less haze, information failure as well as over-enhancement problem.

In order to solve this issue well, we proposed a Hybrid Technique for Enhancing Underwater Image in blurry conditions by joining dehazed technique via gradient guided filter with color balance of the restored imagery.

3. Proposed Method

As depicted in Figure 2 our new scheme primarily to Enhance Undersea picture in blurry conditions using hybrid technique. Initially, we recreate the picture using adaptive regularization. Secondly, we split reconstructed picture using weighted decomposition. Thirdly, improve contrast and texture information using Dehazing via gradient guided filter. Here we estimate global radiance by obtaining average rate vector as brightest rate, transmission map evaluation mainly for enhancing texture feature. Fourth, a color adjustment towards enhancing color. At last, we used hybrid technique for obtaining better picture by computing the mechanisms of dual weights in addition to efficient.

3.1.  Adaptive Regularization for Restoration

For an image , we believe patch based depiction ,  where indicates a parameter to extract patch as of . Suppose a known dictionary meant for , we get  entails as sparse depiction of . In particular, restoration describes

The iterative shrinkage key towards l1-estimation is widely used in previous art. Since the evaluation of get simplified by convergence, trained by a novel dictionary. At present let us include adaptive regularization term [22, 23]. For every patch k-nearest-neighbors patch signify . The weighted guess is representing

where stands for constant to manage the window. Since (2) local form by picture roughly considered with

In matrix type (3) represents

where specify  identity matrix and

It follows from (2) that the nonlocal similarity in a picture roughly considered through

which can be written more efficiently in a matrix type as

Where stands for the identity and

Joining (4) and (7), we have the next novel regularization as

where a novel regularization factor manage stability among local variation with nonlocal strength. The nonlocal regularization term not only imposes nonlocal similarity however as well not directly assist the evaluation of signal variance essential with  as where and  signifies the variance of signal and noise correspondingly.

3.2.  Weighted Decomposition

Weighted decomposition used to separate imagery into various parts and then perform several schemes according to their characteristics. Techniques like wavelet transform and weighted decomposition are most well-liked process. Former scheme is time consuming and cannot take out the characteristics. Later on initiate a weighted decomposition means, which divide true picture into dual part, one conveys the illuminant part as another states the reflectance part of picture as:

where  signifies every color part of picture, denotes reflectance part and represents illumination part.

where denotes weighted factor which improve the dissimilarity of reflectance part for removing backscatter as

Where denotes maximal pel rate of color,  signify a direct cause by resolving reflectance weight, , if , the entire picture treated as illuminate part, while , the entire picture is denoted by  reflectance part.

The backscatter outcome simply exists with illuminate part, whereas reflectance part simply experiences as of color deformation.

3.3.  Radiance Evaluation

To approximate background beam, a supreme approach is to select a picture element, while color deformation and dissimilarity degradation are distance dependent. Though, in this system, scenes are vivid than surrounding beams, may perhaps an unwanted collection outcome. To get precise outcome, we exploit a hierarchical searching means using quad-tree subdivision [24]. Initially, the picture broken up into four identical rectangular areas, after that used for all area by estimating mean rate subtracted from standard deviation as

Where stand for four image areas,  denotes the picture element number contained by the area, signifies picture element of  rate section in  area, represents mean picture element rate of part in  area. Later, we choose the area by least variance, as well as split into quadrant areas. This procedure continues until the size is smaller than threshold. The average rate attained as surrounding beam and considered as brightest rate with the complete representation.

3.4.  Estimate Transmission

The transmission rate cannot be selected randomly; dissimilarity improvement with data defeat lessening must chose keen on concern. First, dissimilarity improvement cost task, , with data loss cost task  reduce dual function concurrently, while dissimilarity improvement cost as negative summation of of every color channels, furthermore data defeat cost as summation of square of reduced picture elements as

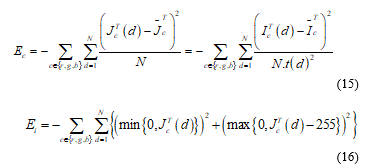

At last, for every local region the best transmission rate is approximated by reducing the later task as,

where denotes weighted factor to organize the control of data loss cost.

3.5.  Dehazing via Gradient Guided Filter

The Guided filter in [25] refine transmission map but cannot signify fine next to a few boundaries. While there might be a few halos in the descriptions. The halos decrease the visual excellence of the resultant descriptions. Hence Gradient guided filtering is an effectual and process transmission map, use input picture as guidance can have executed by linear system as

where represents matting Laplacian matrix, denotes identity matrix, and signify regularization factor. The Laplacian matrix represents

where  stands for number of picture elements in a block, denotes Kronecker delta, and represents gradient guided filter [26] kernel weight as:

where , denotes dimension of filter and signify guidance picture.

To reach a precise transmission map as well as fine points, the advanced diffusion map split up into smooth and detailed part as

where signify smooth part of transmission map while denotes detailed part. For smooth part, we obtain Gaussian low-pass filter as effective smoothing filter, and denoted as:

where denotes scale factor of Gaussian blur. Therefore, the smooth and detailed part can estimate as

Following, the improved transmission map evaluated as:

where represents the enhancement factor to manage the improved measure of detailed part.

3.6.  Color Adjustment

The reflectance part returns the texture and fine points of submerged picture, and only undergoes color deformation caused with energy absorption underneath. Simplest color adjustment [27] is an outstanding means for confirming vast stability among adjustment concert in addition to data loss. The energy absorption in undersea causes color distortion. To overcome this problem, simplest color balance scheme for only extend the picture element of color means whereas conserve data as much as probable with physically set dissimilar truncation relation of color channel, so their histograms are capable towards maximum range [0,255]. For quick stretch, apply an affine transform function on each color channel for mapping picture element from 0 to 255. Though, only some unusual pels previously map most and least standards, for improving color act with small picture element by peak and least rates prior to affine transform task. In fact, this procedure source extra or less white and black area may seem to be not natural. In general, this algorithm not focuses for proper color allotment, but give color adjustment with contrast to some degree.

 3.7.  Hybrid Technique

A hybrid technique mainly combines dual imagery to generate clear representation. The vital task is mainly for computing weight maps of descriptions furthermore joins them mutually by luminance, saliency along with exposedness weight map for deriving normalized weighted maps [28].

Luminance weight map [29] represents luminance factor of every picture part, created with computing STD among color channels along with luminant rate, where luminant rate represents:

where , each denotes weight constraint of color part.  It is capable for exactly reflect luminant measure of picture and illustrate better improvement; it confirms negative possessions on contrast and colorfulness. Headed for avoiding these, introduces successive weight maps.

Saliency weight-map [30], reflects salient things and points, intends to highlight this discerning submerged sight. Main drawback is for overestimating important area, as a result exposedness weight-map exploits to assure precision as well as defend middle color in picture.

Exposedness weight-map [30], assess significance of exposed picture elements. It protects local dissimilarity be non-exaggerated or non-understated. In general, picture element rates close to average rate are likely to have superior look. Gaussian-modelled remoteness to average rate represents

where denotes standard deviation, signify pel rate set at location and represent mean rate. As a result, the entire weight maps proficient for generating fine look for output imagery. The normalized weight map is simply computes:

where specify the kth weight map.

The last free backscatter and color deformation picture be derived as:

where denotes color part of fused image, signifies color part of n^th input. To get enhanced output, we basically exploit a multi-scale pyramid decomposition system for achieving fusion technique. The joint development represents

where denotes Laplacian pyramid of color part of input representation, is stabilized weight map and  represents pyramid stages. While this scheme achieves quite rapid with the enhanced output image can make excellent result.

4. Experimental Results and Analysis

The projected technique evaluates the state-of-art processes; by imagery composed as of representational undersea test imagery and dissimilar metrics utilized to compare enhancement performances of these processes.

4.1.  Qualitative Evaluations

To verify the effectiveness adaptive regularizations, we primarily use reconstruction outcome taking place in picture seer with projected technique in Figure 2. Adaptive regularization shows improved results to remove ringing artifacts near boundaries. The projected technique in Figure 3 composed of adaptive regularization to reconstruct the imagery, weighted decomposition process to separate illuminant and reflecting part. The illuminant part is to improve contrast and texture details using dehazing via gradient guided filter. The reflecting part is to enhance color using color adjustment. Finally, Hybrid technique used to enhance the result. As of Figure 4 weights of dual mechanisms applies a proficient technique for attaining excellence picture. In order to represent different features, we used numerous weight map process to compute the descriptions of true imagery and then join to obtain normalized weight maps. Evaluation of a projected scheme with existing technique shown in Figure 5.  The scheme in [21] better reconstructs the picture but fails to enhance its visibility. The scheme in [14] fails to correct and enhance visibility of degraded picture, amplify noise as well as show poor effect on color adjustment. The process in [15] over-enhance distorted picture, which causes severe, color distortion along with noise amplification, thus integral performance of enhanced picture is worse. The scheme [30] gets good result, not only correcting the color casting but also enhancing the contrast for removing haze. Though, dissimilarity is overstretched in [24], a few picture elements reduced using over-flow or under-flow. The over-enhancement problem in [25] for test images and some information loss exist as well as in boundary effect due to guided filter introduced. Our projected technique is close towards or even somewhat improved than state of the arts. The RGB color space of dissimilar patch dimension in Figure 6 attains fewer pel map result. Moreover, RGB color space in Figure 7 of original imagery with improved results that all the pels of original picture maps into RGB color space gather in left corner, where is large green rate and small blue and red rate, and other method make more or less stretch of the pixel mapping results. The mapping outcome of our scheme is most excellent and it maps the largest area in the RGB color space, which means it has the best integral dynamic compression range. However, many mapping pixels of our method mapped the boundary, i.e., dark region and brightest region, it indicates that there is information loss of our method.

4.2.  Quantitative Evaluations

The submerged quality metrics for evaluating and analyzing excellence of underneath imagery, including gray mean, standard deviation, mean gradient etc. The gray mean rate of an image reflects integral intensity, and higher the gray mean is, higher the intensity is, while standard deviation of a picture reflects high frequency part of a picture, which relates picture contrast, higher the standard deviation is, higher the contrast is as well as greater color data. Meanwhile, [31] show that a picture shows good integral quality when gray mean among 100 and 200 and its standard deviation among 35 and 80 after they analyzed and statistic a large measure of imagery. Mean gradient reflects speed of the changes of minor details in picture; it can represent the features of texture transform and the degree of clearness well. Table 1 review metric outcome for reconstruction used for different patch dimension also patch by small dimension offer better result. Following, Table 2 achieves best results in [15], µ_RG and µ_YB which are close to zero. The largest σ_RG in [25], largest σ_YB in original imagery. Overall, our method obtains the highest score after computing the PSNR, SSIM, UICM, UIConM and UIQM value, lowest score in SSIM. Consequently, projected system is better than existing system giving enhanced outcome.

Where denotes standard deviation, represents mean picture element,  represents mean gradient and  signify amount of picture elements. Efficient metric UIQM composed of three independent measurements [32-34] as described below.

1. a) Undersea Image Colorfulness Measurement (UICM)

The performance of color correction used for evaluating performance of undersea picture improvement progression, with red-green (rg) along with yellow-blue (yb) color parts are used:

Considering that submerged picture often suffers heavy noise, the asymmetric alpha-trimmed statistical standards [35] used for measuring submerged picture colorfulness,

where signify total number of pels in the rg part and all pels sorted as are the amount of least and most picture element to be reduced as of sorted order . The average rate corresponds to chrominance gray, and average rate close towards nil in rg-yb color part imply superior for balancing color. Further, the second-order statistic variance is defined by:

 represents the pixel activity. The first and second order statistic information and of the yellow-blue part be computing in similar way. The whole, colorfulness coefficient parameter is expressed as

1. b) Undersea Image Sharpness Measurement (UISM)

Sharpness reflects details and edges of an image, and fine captured images are likely to show better sharpness. For more efficient, enhancement measure estimation (EME) as

where picture divided by blocks, and obtain the maximal and minimal pel values in each block, indicates comparative dissimilarity relation in every block. Then the undersea image sharpness measure (UISM) can be written as:

where  stands for weight coefficient of each color part.

1. c) Undersea Image Contrast Measurement (UICM)

Intended for submerged descriptions, dissimilarity Distortion is usually happened with backscattering. The contrast performance be measured by:

and submerged picture contrast measure be written as:

1. d) Undersea Image Quality Measurement (UIQM)

Undersea descriptions modelled as linear superposition of absorbed as well as spreaded part. Meanwhile, absorption and scattering by dusk-like particles causes color casting, sharpness attenuation with dissimilarity distortion. Consequently, logical use of linear form to create entire UIQM as:

where , , and  signifies weight coefficients to organize each measure as well as balance their values.

Figure 2: Results of Reconstruction

Figure 3: Results on the process of Proposed Method

Figure 4: Weight maps of Fusion development

Figure 5: Evaluation of Projected by Existing technique

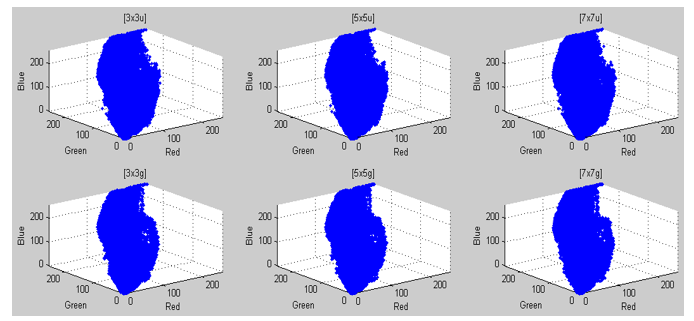

Figure 6: RGB color space mapping reconstruction results on seer image

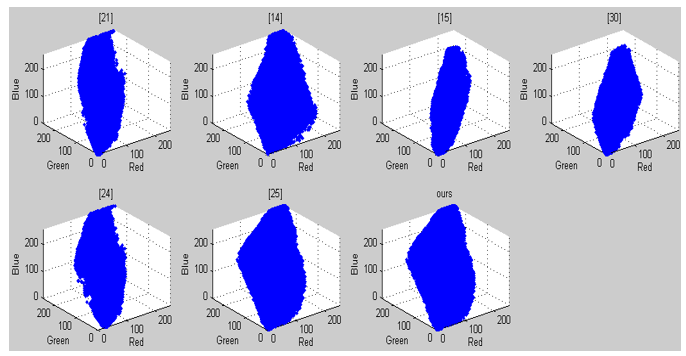

Figure 7: RGB color space mapping Enhancement results on seer image

Table 1: Reconstruction metric results of seer image

	Uniform blur			Gaussian blur
	7×7	5×5	3×3	7×7	5×5	3×3
Mean	127.33	127.35	127.36	127.35	127.37	127.37
SD	71.266	71.184	71.136	70.148	70.065	70.027
AG	9.767	8.910	8.476	6.721	6.262	6.129
PSNR	26.16	26.28	26.35	23.96	24.04	24.05
RMSE	17.827	17.469	17.270	13.689	13.320	13.169
SSIM	0.741	0.754	0.756	0.618	0.623	0.622
µRG	-45.531	-45.543	-45.558	-45.535	-45.538	-45.537
µYB	27.93	27.92	27.906	27.734	27.73	27.729
σRG	-41.214	-41.311	-41.352	-41.272	-41.326	-41.34
σYB	27.004	27.038	27.052	26.892	26.91	26.918
UICM	-45.531	-45.543	-45.558	-45.535	-45.538	-45.537
UIConM	0.745	0.737	0.736	0.716	0.704	0.704
UISM	7.059	6.890	6.906	6.512	6.276	6.244
UIQM	3.467	3.388	3.389	3.199	3.0891	3.080

 Table 2: Enhancement metric results of seer image

	Original	[21]	[14]	[30]	[24]	[15]	[25]	Ours
Mean	127.39	127.34	129.26	104.05	128.99	103.41	136.21	136.21
SD	66.272	71.236	68.047	56.586	70.056	64.509	82.112	83.494
AG	3.790	9.226	15.819	11.89	9.326	8.660	12.212	12.517
PSNR	21.53	24.10	27.670	28.483	16.557	28.073	30.004	30.013
RMSE	21.369	13.717	10.544	9.602	37.900	10.022	8.059	8.052
SSIM	0.466	0.619	0.724	0.786	0.839	0.765	0.841	0.842
µRG	-45.685	-45.533	-4.937	-24.524	-33.344	-0.960	-37.795	-37.801
µYB	-41.664	-41.224	-13.078	-25.712	-36.852	-1.732	-35.456	-35.472
σRG	27.789	27.93	22.343	23.581	33.732	11.964	29.896	29.888
σYB	27.155	27.016	20.332	22.625	30.378	9.647	26.214	26.226
UICM	4.505	4.516	-4.937	4.223	-33.344	-0.960	4.917	4.917
UIConM	0.621	0.741	0.836	0.827	0.790	0.872	0.480	1.0318
UISM	5.771	7.005	7.132	7.055	7.003	6.911	7.013	6.997
UIQM	2.637	3.434	4.957	4.3512	3.952	5.132	2.723	4.689

5. Conclusion and Future Work

This work is mainly for Enhancing undersea representation in blurry conditions using Hybrid technique. Our scheme composed with Adaptive regularization for recreation, weighted decomposition procedure to separate recreated imagery into color change along with dehazed schemes separately, then multi-scale fusion technique towards enhancing picture. The strong with effective Hybrid technique which incorporate the description of all fused imagery into resultant outcome constitute backbone of projected scheme. In fact, the projected scheme generally beats other methods in terms of qualitative as well as quantitative evaluations. Our technique confirms excellent act for undersea imagery, but border effect cause data loss. Meantime, our technique does not outperform some of the state-of-art system and even direct over improvement for precise cases. The challenging work for future would be to find out a well-organized means to about vertical deepness and optimize the transmission deepness of undersea imagery more precise, at last build up absolute, effective and well-organized system.

Conflict of Interest

The authors declare no conflict of interest.

Acknowledgment

The authors thank the reviewers for their thorough and helpful remarks.

1. Ruo W, Yaf W, Jun Z, Xianp F. “Review on Underwater Image Restoration and Enhancement Algorithms”, 7th Intern Confrnc on Intrnt Multimedia Comput and Serv ACM, 2015.
2. Schetni R, Cors S. “Underwater Image Processing: State of the Art of Restoration and Image Enhancement Methods”, EURASIP Jrn Advn sgnl Pr, Jan 2010.
3. John C, Yin C.C. Underwater Image Enhancement by Wavelength Compensation and Dehazing, IEEE Transc Img Pr-2012.
4. Ancut, Hermns, and Beka, “A Fast Semi Inverse Approach to Detect and Remove the Haze from a Single Image’,’ Comp Vis: Springer, Nov2011
5. Ancu, C. Anc, and Bekae,” Effective Single Image Dehazing by Fusion,” Procd IEEE Intr. Confr. Img Proc, Sep-2010.
6. Ancut and Ancut C, “Single Image Dehazing by Multi-Scale Fusion,” IEEE Transct Img Proc, Aug-2013.
7. O. Ancu, T. Habe, and Bekae, “Enhancing Underwater Images and Videos by Fusion,” Proce. IEEE Confrn. Comp. Visn. Pattrn Recogn, Jun. 2012.
8. Hem, Jia S, and Xiao T, “Single Image Haze Removal using Dark Channel Prior,”, IEEE Transc. Patrn Analy. Macnn, Dec. 2011.
9. Raan F, “Single Image Dehazing”, ACM -Transc Graphic, Aug- 2008.
10. Xue F, Yu H, Del Z, Xia P and Xing D, “A Fusion-based Enhancing Approach for Single Sandstorm Image”, IEEE Intrn. Wrkshp Mult S/gl Proc, Sept-2014.
11. Fan G, Jin T and Zix C, “Fusion Strategy for Single Image Dehazing”, Jrn. Dig. Contt Techl. App, Jan. 2013.
12. O. Ancuti, C. Ancuti, C. De Vleeschouwer, and A. C. Bovik, “Single-scale fusion: An effective approach to merging images,” IEEE Trans. Image Process., vol. 26, no. 1, pp. 65–78, Jan. 2017.
13. Lu, Y. Li, S. Nakashima, H. Kim, and S. Serikawa, “Underwater image super-resolution by descattering and fusion,” IEEE Access, vol. 5,pp. 670–679, 2017.
14. Zuiderv K., “Contrast limited adaptive histogram equalization”, pub book Graphcs gem IV, 1994.
15. Fu X, Zhug P, Huang Y, Yin L, Xia P and Xing D, “A Retinex-based Enhancing Approach for Single Underwater Image”, Img Procd IEEE Intrl Confr, 2014.
16. Emb S., Chi L., Cava A, “Underwater image and video dehazing with pure haze region segmentation”, Comp Vis and Im Unde, 2018.
17. Peng Y, Cos P,”Underwater image restoration based on image blurriness and light absorption”,IEEE Tran on Im Pro, 2017.
18. Li C, Cava, “Background light estimation for depth-dependent underwater image restoration”,IEEE Intl Conf on Ima Processg, 2018.
19. , Ancut., D Vlee, Bekt, P, “Color balance and fusion for underwater image enhancement” IEEE Transa Imge Pro, 2018.
20. Ber D., Trei T., Avid S, “Diving into haze-lines: Color restoration of underwater images”, Brith Mach Visn Confer, 2017
21. Chrispin jiji and Nagaraj Ramro “Deblurring Underwater Image Degradations based on Adaptive Regularization” IEEE Inter Conf on Computat Intelli and Comput Rese, 2017
22. Weis D, Guang S, Xi L, Lei Z and Xiaol, “Image Reconstruction with Locally Adaptive Sparsity and Nonlocal Robust Regularization”, S/gl Procg: Imag Comn, Nov-2012.
23. Dong, Zhan, Gua S and Xiaoli, “Image Deblurring and Super Resolution by Adaptive Sparse Domain Selection and Adaptive Regularization”, IEEE Transa Ime Proces, July 2011.
24. Kwa K, Wo J , You S “Optimized Contrast Enhancement for Real Time Image and Video Dehazing”, Jrn Visu Commn Img Repr, Feb-2013.
25. Zhang, “Removing backscatter to enhance the visibility of underwater objects”,msc dissertn, Nanyang Univ, 2016
26. F Ko, Weih C, Changy W, Zhengg L, “Gradient Domain Guided Image Filtering”, IEEE Transc Img Proceg, 2015.
27. Ancut , Cosm Chri , Philip, “Color Balance and Fusion for Underwater Image Enhancement”, IEEE Tra Img Procg, Jan 2018
28. Anc, Ancu Cod, T Hab, Phil B,”Fusion-based Underwater Image Enhancement by Weight Map Techniques”,IC3-2018, Chap in Adv in Intell Sys and  Comp, Jan 2019.
29. Ancti, Habr T and Phil B. Fusion-based Restoration of the Underwater Images”, Intrn Confrn Img Proc, Sep-2011.
30. Ancti C, Ancu O, Haer “Enhancing Underwater Images and Videos by Fusion”, Compr Visn Patn Recogn , Jun-2012.
31. Jobson D, Rahman Z, Woodel “The Sstatistics of Visual Representation”, Procd SPE- 2002.
32. Panet K, Ga C and Agai S,“Human-Visual-System-Inspired Underwater Image Quality Measures”, Jr of Ocen E-2016.
33. Cha Y, Ric M, Andr C, “An Online Platform for Underwater Image Quality Evaluation”, Intl Confr on Patn, CPR 2018
34. Priya S and Sim, “Quality measure technique for Underwater images using Artificial neural network” Jon of Eng and Appl Sc, 2018
35. Bedr and Watt, “Alpha-Trimmed means and their relationship to Median Filters,” IEEE Transc Acost. Spch Sigl Proc, 1984.
