1. Introduction

Through innovative thinking, most of the wastes in our environment which take space, and require huge cost of disposal or pollute our ecosystem as they decompose or when burnt, can be converted for use in the industry to develop improved materials which are indigenous for enhancing cost effective production and customer satisfaction. Consequently, this work focuses on investigating the potential of cocoa beans shell which is one of the agro-waste in our environment, to be used as indigenous inoculant for improving the microstructure and mechanical properties of pure aluminium.

Pure aluminium does not have a high tensile strength. However, the addition of alloying elements like manganese, silicon, copper and magnesium can increase the strength properties of aluminium and produce an alloy with properties tailored to particular applications [2].Pure aluminium is soft, ductile, corrosion resistant and has a high electrical conductivity. It is widely used for foil and conductor cables, but alloying it with other elements is necessary to provide the higher strength needed for other applications. Aluminium is one of the lightest engineering metals, having strength to weight ratio superior to steel. By utilizing various combinations of its advantageous properties such as strength, lightness, corrosion resistance, recyclability and formability, aluminium is being employed in an ever-increasing number of applications. This array of products ranges from structural materials to thin packaging foils [1, 2].

Aluminium is well suited to cold environments. It has the advantage over steel in that its’ tensile strength increases with decreasing temperature while retaining its toughness. Steel on the other hand becomes brittle at low temperatures [3].

Inoculation is defined as the addition of a certain solid particles to the molten metal in order to obtain changes in crystals distribution, more uniform microstructure, improvements in mechanical properties, and a reduction of the chilling tendency [4].

The phenomenon of crystallization following after pouring molten metal into the mould, determines the shape of the primary casting (ingot) structure, which significantly has effects on its usable properties. The crystallization of metal in the mould may result in three major structural zones [2, 5].

(a)   Zone of chilled crystals (grains) formed by equiaxed grains with random crystallographic orientation, which are in the contact area between the metal and the mould.

(b)   Zone of columnar crystals (grains) formed by elongated crystals, which are parallel to heat flow and are as a result of directional solidification, which proceeds when thermal gradient on solidification front has a positive value.

(c)   Zone of equiaxed crystals (grains) formed by equiaxed grains with random crystallographic orientation in the central part of the casting. The equiaxed crystals have larger size than chilled crystals and are as a result of volumetric solidification, which proceeds when thermal gradient has a negative value in liquid phase.

Depending on the cooling rate, chemical composition and the intensity of convection of solidifying metal in the casting may be three, two or only one structural zone [2].

The tensile strength of wrought aluminium is not high. However, introduction of alloying elements such as silicon, copper, manganese, and magnesium can enhance the strength characteristics of aluminium and make an alloy having properties targeted at particular applications [6].

Thorough literature study revealed that the inoculant (powdered CBS) used for this work has never been used before as a grain refiner for any metal. Common aluminium melt treatment inoculants in use include MgFeSi [7], Al-Ti-C and Al-3Ti-1B [8], in situ AlN-TiN-TiB2/Al composite inoculants [9]. Addition of some special master alloys that have much particles functioning as the substrates for heterogeneous nucleation can cause the grain size of the inoculated alloys to be noticeably reduced and enhance the comprehensive properties [10 -12]. In reality, majority of the master alloys are linked to Al-based composites, in which the aluminium-based solid solution is the matrix and the inoculant particle is the secondary phase [9].

From literature search, cocoa bean shell was found to contain some already existing inoculant elements as part of its compositions. The overall content of cocoa bean shell [13] and the mineral content [14, 15] are as shown below in Table 1 and 2 respectively.

Table 1. Content of Cocoa Bean Shell Powder

Minerals	43.18%
Crude fibre	21.3%
Crude protein	17.6%
Ether extract	5.9%
Ash	9.3%
Total sugar	1.0%

Table 2.  Mineral Content of Cocoa Bean Shell

Minerals	Value
Calcium	3.7g/kg
Phosphorus	4.4g/kg
Potassium	26.8g/kg
Sodium	0.2g/kg
Magnesium	4.3g/kg
Copper	39mg/kg

Therefore, the scope of this work is specifically to study the inoculating ability of the selected agro-waste and to investigate the effect of varying the grain size of the inoculant on pure aluminium. The evaluation will be limited to determining the tensile strength, ductility, micro hardness and microstructure of the resulting specimens.

2. Materials and Method

2.1 Materials/Equipment Selection

The materials selected for this research are cocoa bean shells (CBS), silica sand, water, and pure aluminium having the composition as presented in Table 3. Equipment selected include sieves of aperture 150μm, 225μm, and 300μm respectively, LCD series 2-digits and 3-digits electronic weigh balance, a 40kg capacity crucible furnace, three rectangular shaped wooden patterns of dimension 300mm x 40 mm which were used to make a pair of cope and drag moulds, a stirrer, hack saw, Universal Testing Machine (model- UTE 100, max.capacity-30KN, Make-Fuel Instruments & Engineer’s Pvt. Ltd., Maharashtra), Vickers Micro hardness tester (Make-Saroj Udyog Pvt. Ltd., Maharashtra, India), Structure reveal machine (Meji optical microscope Make ZEISS Axiovert 40 MAT, Japan), and Keller enchant. All the workshop and laboratory equipment utilized were assessed at the Federal University of Petroleum Resources, Effurun (FUPRE), and the Petroleum Training Institute (PTI), both are situated in Delta State, Nigeria.

Table 3. Composition of the chosen pure aluminium

Alloys	Al	Fe	Si	Cu	Ti	Mn
Composition	99.9	0.03	0.04	0.01	0.01	0.01

 2.2 Method/Experimental Procedure

Dry sand casting method was used to produce the test samples. The agro-waste based inoculant raw material (CBS) was obtained separately (Figure 1), well sun-dried, and cleaned to remove impurities. It was then crushed, and pulverized into a fine powder and sieved using different sieves of 150, 225, and 300microns aperture respectively [16]. The samples were sand cast in the foundry workshop. The aluminium was melted using a 40 kg capacity crucible furnace pre-heated at 10°C. Three rectangular shaped wooden patterns of dimension 300mm x 40 mm were used to make a pair of cope and drag moulds. Four moulds were prepared a day before the actual casting from a mixture of dried fresh silica sand, and water. This was done to dry the mould completely in order to reduce casting defects. The four moulds were labeled as sample 1, 2, 3 and 4 respectively. A 15 Kg known quantity of pure aluminium were melted at 720°C in the crucible furnace and poured at 700°C into the pouring ladle. The first batch of the melt without addition of inoculant was poured into the mould labeled sample 1. Thereafter, a known quantity (15grams precisely) of the inoculant having grain size of 150 microns (Figure 2) was added to the melt stream and stirred manually with a stirrer in order to facilitate a homogeneous bath and poured into the second mould labeled sample 2. Also, addition of the inoculant having grain sizes of 225 (Figure 3), and 300microns (Figure 4) was done in succession and poured into the third and fourth moulds labeled sample 3, and 4 respectively. A uniform quantity (15g) of the inoculant was used for all samples produced.  After, total solidification, the castings were knocked out of the moulds and thoroughly fettled and cleaned before dispatching them for evaluation.

The various test samples were cut or shaped to sizes and taken to the Petroleum training institute metallurgical/microscopic accredited laboratory for micro hardness test, tensile test and Image analyzer test respectively. As shown in the appendix, the samples were machined and measured to fit into the Universal Testing Machine as per ASTM standard. The Micro hardness of the samples was determined using Vickers Micro hardness tester, carried out under a load of 187.5 N and a dwell time of 5 seconds. Structure revealing machine was used to take micro structural images of the specimens at 40 x magnification. The etching was done using Keller enchant.

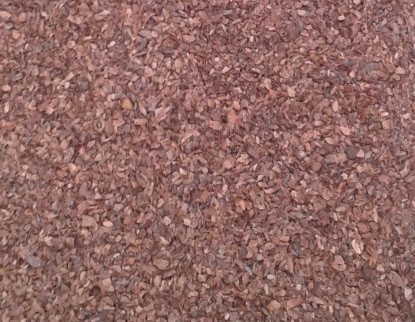

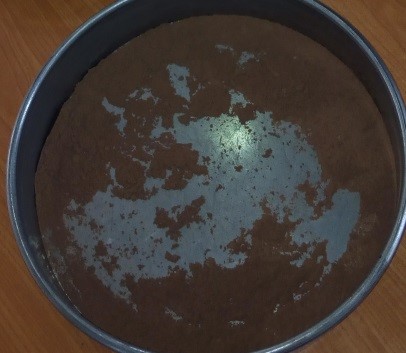

Figure 1. Raw Cocoa Bean Shells (CBS)

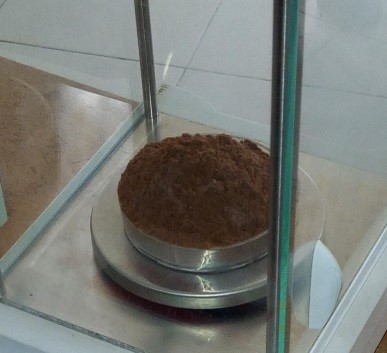

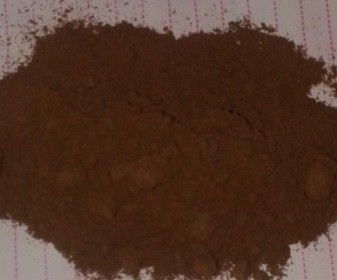

Figure 2. Pulverized Cocoa Bean Shells (150microns)

Figure 3. Powdered Cocoa Bean Shells (225μm)

Figure 4. Pulverized CBS (300μm)

2.2.1 Tensile Testing Procedure

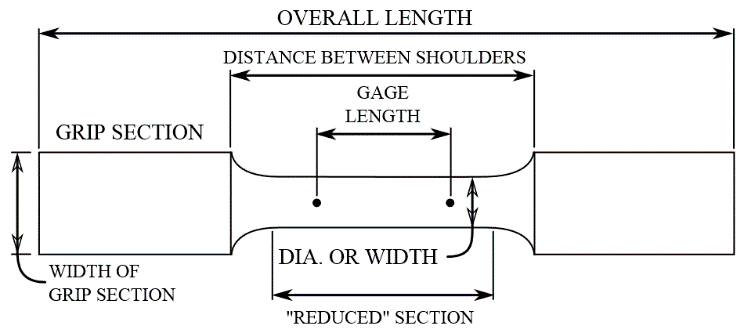

As shown in Figure 5, each of the test specimens was specified to have 70mm gauge length on the tensile test specimen using the dial callipers and marker. Then the thickness and width of the specimens was re-checked using the dial callipers. The specimen was placed on the machine grips and removed the slack by moving the lower crosshead. The load indicator was set at zero and the right side hydraulic valve was opened about halve turn. Load was applied increasingly at a slow rate. Strain value started to increase more rapidly as the load was continuously applied on the sample until it fractured. The load at failure was read from the load indicator and recorded. Using the dial callipers, the dimensions of the final gauge length, thickness and width was obtained and recorded.

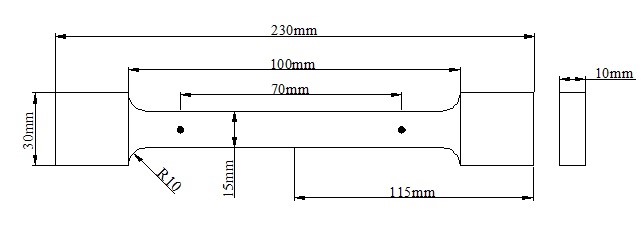

Figure 5. Tensile Test Specimen Specification

2.2.2 Microstructural Examination Procedure

The specimen was cut to a hard grip size using hack saw. As shown in the appendix, the specimens were inserted in phenolic resin in order to enable easy manual and automated grinding/polishing operations. After mounting, surface damages created by hacksaw during cutting were removed by grinding operation using emery papers of fineness number in the following increasing order: 150, 220, 320, 400, 600, 800 and 1200 respectively. During the process, water was constantly added to reduce friction on the phenolic resin surface and also air-dried with blower immediately after grinding to avoid rust. The fine scratches caused by final grinding operation were removed by mounting the specimen on a polishing machine with a mixture of manganese dioxide (MnO₂). In other to reveal the microstructural features of the polished specimen, the specimen was etched in 190ml distilled water, 5ml Nitric acid, 3ml hydrochloric acid and 2ml of hydrofluoric acid for 23seconds. After etching operation, the specimens were vigorously washed in water and blown immediately before taking them to the metallurgical microscope for inspection. The pictures resulting from inspection was magnified to 40  0.65 for proper understanding of the micrographs.

2.2.3 Vicker’s Micro Hardness Testing Procedure

Micro hardness testing is a method of determining a material’s hardness or resistance to penetration when test samples are very small or thin, or when small regions in a composite sample or plating are to be measured. During micro hardness testing, a Vicker’s (DPH) diamond indenter is pressed into the mounted specimen’s surface with a penetrator and a light load of up to 1000 grams. The result of applying the load with a penetrator is an indentation or permanent deformation of the material surface caused by the shape of the indenter. Accurate measurement of the resulting indentation requires the use of a special micro hardness testing microscope since the indentations are so small. The procedure is pictorially displayed in Figure 6.

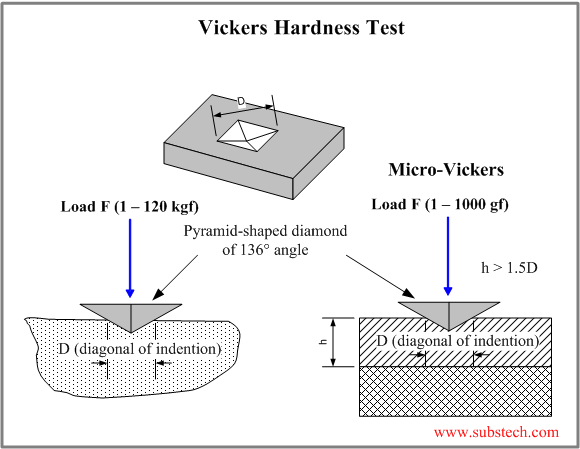

Figure 6. Vicker’s Hardness Procedure

3. Results and Discussion

3.1 Tensile Testing Result

Tensile strength and ductility values are computed from the ultimate tensile testing machine.

The following equations (1) to (6) were used in calculating the tensile strength values

The reading taken from the ultimate tensile testing machine is as presented in Table 4.

Table 4. Tensile Strength Test Data Obtained for all Samples

SAMPLE	Lo (mm)	Lf (mm)	Do (mm)	Df (in)	Ao (in2)	RAM LOAD (RL)
Pure Al without inoculant	110	122	12.0	0.47	0.175	1300
Pure Al with 150μm inoculant	110	112	12.2	0.48	0.181	1150
Pure Al with 225μm inoculant	110	111	12.1	0.476	0.178	1000
Pure Al with 300μm inoculant	110	110.5	12.2	0.48	0.181	900

The distribution pattern of Ultimate Tensile Strength (UTS), Yield Strength (YS), and percentage Elongation (%E) of each of the specimens are calculated as follows using equations (1) to (6).

• Pure Al without Inoculant

   = 0.175in²

 = 8439.6 lb

  = 48226 psi

 = 10.9%

• Pure Al with 150μm inoculant

 = 0.181in²

 = 7465.8 lb

  = 41247.6 psi

 = 1.82%

• Pure Al with 225μm inoculant

 = 0.178in²

 = 6492 lb

  = 36472 psi

 = 0.91%

• Pure Al with 300μm inoculant

 = 0.181in²

 = 5842.8 lb

  = 32280.7 psi

 = 0.45%

The above results for each specimen are converted to S. I. unit and summarized as presented below in Table 5.

Table 5. Summary of the calculated Tensile Strength and Ductility Values (converted) of each specimen.

Sample	UTS (N/mm2)	YIELD STRESS (N/mm2)	YIELD LOAD (N)	%E
Pure Al without inoculant	333	253	28655	10.9
Pure Al with 150μm inoculant	284	217	25350	1.82
Pure Al with 225μm inoculant	251	192	22045	0.91
Pure Al with 300μm inoculant	223	170	19839	0.45

Note in table 4 that:

D_o           =              Initial Diameter

D_f                =            Final Diameter

A_o           =              Initial Area

L_o            =              Original Length

L_f            =              Final Length

E             =              Elongation

From Table 5 above, it is shown that the tensile strength of the specimen diminishes as the grain size of the inoculant increases. This may be as a result of increased fine crystals of aluminium. Finer crystals lead to reduced tensile strength but increased compressive strength [17]. Reduced elongation (E) is also an indication of declining ductility of the metal. Ordinarily, the presence of copper in pure aluminium is to improve the strength and machinability, but other elements such as Calcium, Phosphorous, Potassium, and sodium present with it in the inoculant might have inhibited its effect on the aluminium [17].

3.2 Metallographic Test Result and Analysis

Figures 7, 8, 9 and 10 show the microstructures of the inoculated aluminium. It is obvious from the figure that the microstructure consists of two distinguished phases – a dark and a bright white phase. The rough surface was not actually from the specimen preparation but from the way the material was cast.

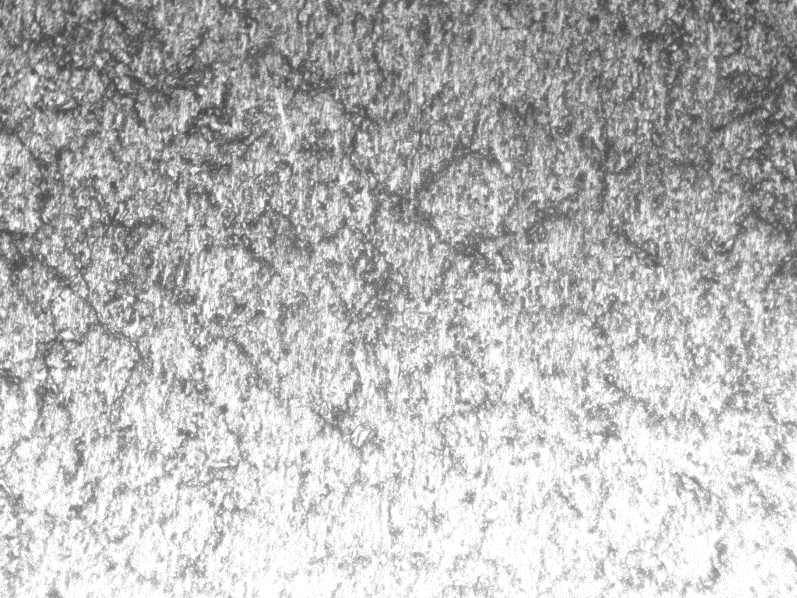

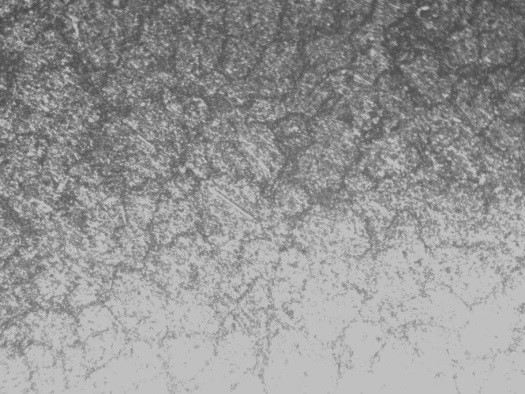

Figure 7. Pure Al sample without inoculant at  Magnification

Figure 8. Pure Al sample with 150μm inoculant at  Magnification

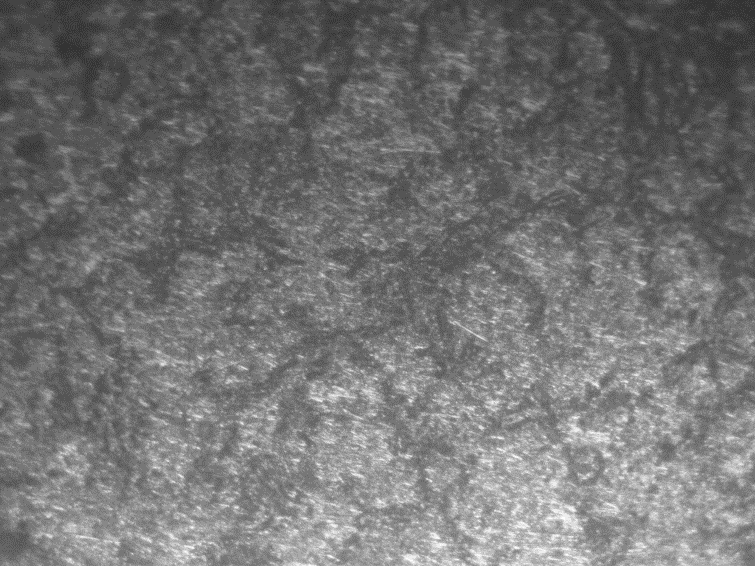

Figure 9. Pure Al sample with 225μm inoculant at  Magnification

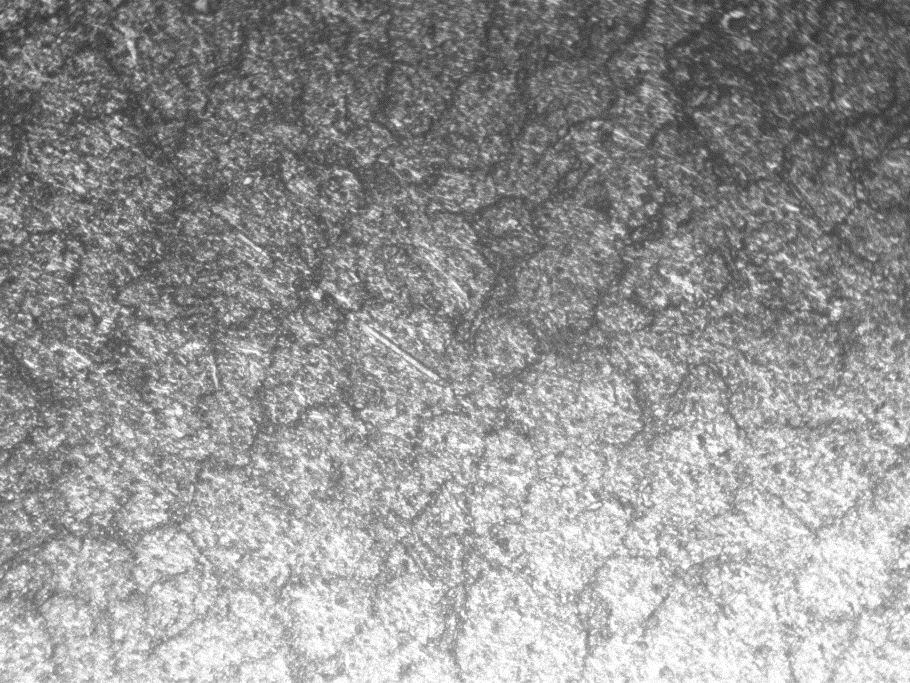

Figure 10. Pure Al sample with 300μm inoculant at  Magnification

It is seen from the microstructural examination as depicted in figures 7 to 10 that addition of inoculant introduced whitish phase in the microstructure, and it became more pronounced as the grain size of the inoculant increased in the metal matrix. Also the aluminium crystals appear finer in succession. This is responsible for lower tensile strength and higher compressive strength.

3.3 Vicker’s Micro Hardness Result

From the appendix (Figures 4 to 7) the results and pictures from the Vicker’s hardness test are presented. It indicated that the increasing grain size of the inoculant added to the pure aluminium increases the micro hardness of the material. After conducting the Vicker’s hardness test at different point on the samples, the specimen with no inoculant addition (the control sample) has an average hardness value of 29HB. While each pure Al sample with inoculant having 150µm, 225µm, and 300µm grain has an average hardness value of 56HB, 61HB, and 72HB respectively.

4. Conclusion

In this work, the effects of varying the grains size of the selected agro-waste based inoculant on some mechanical properties of pure aluminium was studied. The microstructural examination showed that the mechanical properties are dependent on the matrix as the aluminium grains became more refined with increasing grain size of the inoculant. I.e. Due to increasing grain size of the inoculant, the micro hardness increased as the aluminium crystal size became finer. Meanwhile, the tensile strength, and ductility decreased as grain size of the inoculant increased. The overall results showed that the used agro-waste based inoculant has the capability of refining the crystal size of pure aluminium as its grain size increases. This will make the resulting aluminium alloy applicable in areas where hardness is of superior consideration relative to tensile strength.

Conflict of Interest

The authors have no conflict of interest.

Acknowledgment

The authors appreciate all the personalities that contributed in one way or the other towards the breakthrough of this work.

Appendix

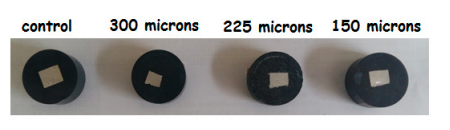

Figure 1. Mounted Microstructural Test Specimens

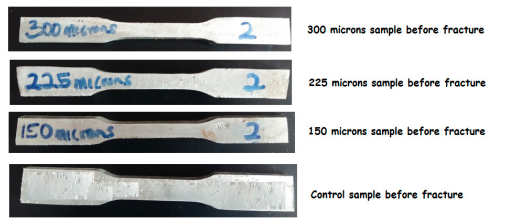

Figure 2. Tensile Strength Specimens before Fracture.

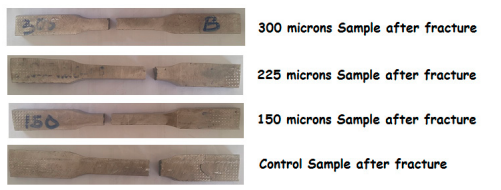

Figure 3. Tensile Strength Specimens after Fracture.

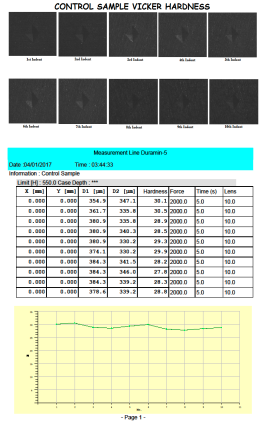

Figure 4. Vicker’s Hardness Results of Non-inoculated aluminium Specimen

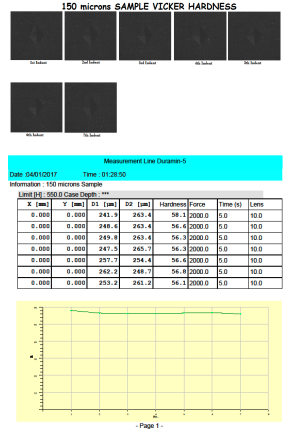

Figure 5. Vicker’s Hardness Results of aluminium Specimen with 150μm grain size of the inoculant

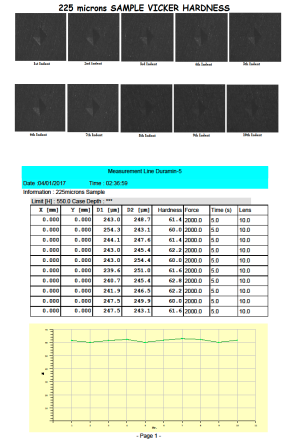

Figure 6. Vicker’s Hardness Results of aluminium Specimen with 225μm grain size of the inoculant

Figure 7. Vicker’s Hardness Results of aluminium Specimen with 225μm grain size of the inoculant
