1. Introduction

Frequency diverse array (FDA) utilizing a small frequency increment across each antenna elements was proposed by [1], to steer the beam electronically in angle and range dimensions. The FDA concept has range dependent beamforming capability. It was observed that frequency increment makes the array beampattern changes as a function of the range, angle and time [1]–[3]. In [4], FDA applications for various modes of operations in radar systems has been presented. The periodicity of beam pattern in time, range and angle was investigated in [5]. In [6], a linear FDA was proposed to address the range ambiguous clutters and improves the detection ability in a relatively slow moving targets. The radiation capabilities of FDA was presented in [7] to show its beam scanning features. Also it was proven that the scanning speed was related to frequency offset employed between two neighboring antenna elements. In [8], the range and angle coupled beamforming with frequency diverse chirp signals was presented. In addition, [9] investigated FDA range-angle dependent beamforming to suppress interferences at different ranges and directions.

FDA has a lot of promising application [10] which has sparked many interesting investigations in finding a suitable frequency offset to provide range-angle dependent. It is important to mention that frequency offset across the FDA elements plays essential role in improving the overall performance of an FDA radar, especially in controlling range-angle dependency and spatial distribution of generated beam pattern [11], [12]. Hence, researchers have shown great interest to investigate frequency offset between the adjacent elements of FDA to improve its performance. Since FDA offers a range-angle dependent beampattern, it is of great significance as this provides a potential for range-angle localization of targets, however, the beampattern of the conventional FDA is coupled in range-angle dimension.

In this regard, a nonuniform linear array was proposed in [13] to decouple the FDA transmit beampattern, however, the carrier frequency and/or frequency increments cannot be altered in real-time because it requires relocating the elements mechanically. In [14] and [15], logarithmically increasing frequency offsets and time-dependent frequency offsets, respectively are reported to decouple the range-angle beampattern. However, these methods resulted in poor beamforming performance in the range dimension. Note that the best decoupling way is to form a dot-shaped beampattern rather than S-shaped beampattern.

In this paper, transmit/received beamforming FDA radar with symmetrical frequency offset to decouple range and angle beampattern in order to produce a single maxima is investigated. The idea is to use the symmetrical frequency offset to provide extra degree of freedom in terms of producing single maxima for a particular target of interest in a given region. Due to single maxima the received signal at the receiver array will be better than the signal for the conventional FDA. Furthermore, the proposed transmit/received beamforming are evaluated by the signal-to-interference-plus-noise ratio (SINR) and detection probability. Results shows the superiority of the proposed method.

The remaining sections are organized as follows: Section II presents the signal model of the conventional FDA, followed by the proposed symmetrical frequency offset FDA radar. Section III presents proposed method transmit / received beamforming. Section IV derives the SINR and detection probability. Section V presents results and discussions and concluding summaries are drawn in Section VI.

2. Background

2.1.  Conventional FDA Range-Angle Dependent Transmit Beampattern

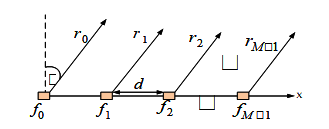

Figure 1: Illustration of linear frequency offset conventional FDA.

Figure 1 shows the conventional FDA antenna array structure. The narrow-band monochromatic signal radiated from each element is identical but with a frequency increment ∆f. The radiated frequency of the mth element can be expressed as

Equation (4) implies that FDA has range, angle and time dependent transmit beampattern. However, the beampattern is coupled in the range and angle dimensions and consequently it will have multiple maximums. To avoid the dependence of range gain on the angle, the FDA parameters should be properly designed.

2.2.  Proposed Symmetrical Frequency offset FDA for Transmit / Received Beamforming

In this paper, the symmetrical frequency offsets is proposed to decouple range and angle beampattern in order to localize a target in a given region. In designing symmetrical frequency offset, the central element is chosen as the symmetric point depicted in Figure 2.

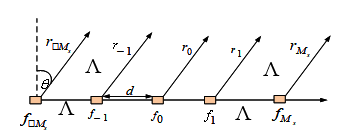

Figure 2: Illustration of proposed symmetrical frequency offset FDA.

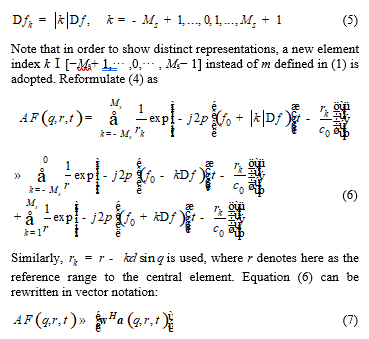

In this paper, odd number of elements are assumed, namely, M = 2Ms 1. The frequency offset for the kth element can be expressed as

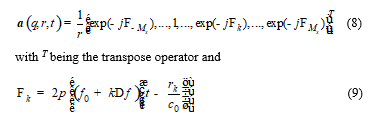

The w can be optimally designed to synthesize the desired transmit beampattern.

3. Transmit / Received Beamforming for Symmetrical frequency offset FDA

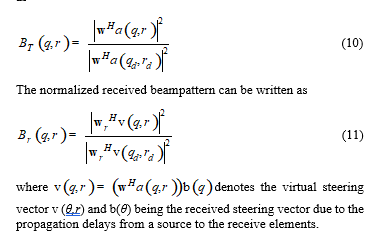

In this section transmit and received beamforming for proposed method is presented. The transmit beamforming can be expressed as

4.       Performance Analysis

4.1.  SINR

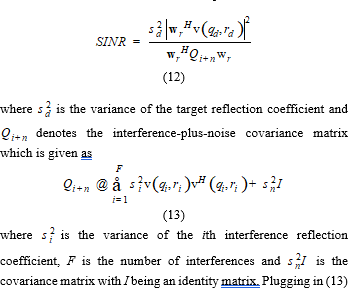

The performance analysis of the proposed method are evaluated by signal-to-interference-plus-noise ratio (SINR) and probability of detection. First of all SINR can be expressed as

4.2.  Probability of Detection (Pd)

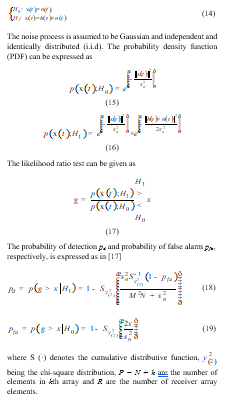

In this section, the probability of detection (Pd) is employed to evaluate the performance of a radar system. For the proposed method, the hypothesis problem can be written as

5. Results and Discussions

In the simulations, the carrier frequency f₀ = 10 GHz, frequency offset ∆f = 3 KHz. Both transmit and receive arrays M and N, respectively, have 8 antenna elements spaced by half wavelength . The target is assumed to be located at (θ_d,r_d) = (50°,50 km). Gaussian noise is utilized as additive noise with zero mean spatially and temporally white random sequence having same variance on each array elements.

1. Transmit Beampattern

First, normalized transmit beampattern for FDA and the proposed symmetrical FDA is presented to show the effectiveness of symmetrical FDA. Note that the two arrays are steered to instantaneous angle = 0° and the beam direction ranges are also normalized to zero-range. Figure 3(a) illustrates the conventional FDA beampattern which is coupled in the range-angle dimension.

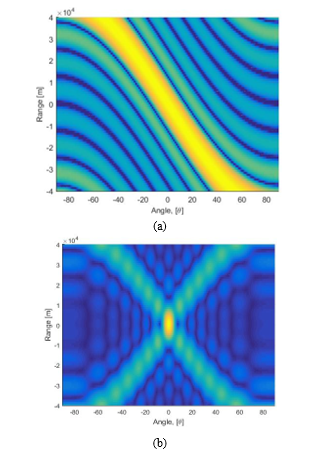

Figure 3: Comparisons of normalised transmit beampattern when ∆f = 3 KHz is adopted: (a) Conventional FDA, (b) Proposed symmetrical FDA.

In contrast, Figure 3(b) shows the proposed symmetrical FDA which has decoupled range-angle beampattern. And this is beneficial for targets localization.

As shown in Figure 4(a), the conventional FDA beampattern shows the problem of periodic maxima. This maxima are undesirable for proper target localization. On the other hand, Figure 4(b) shows the proposed method beampattern which produce exactly one maxima at target location and no other maxima is seen in the entire region of observation.

2. Received Beampattern

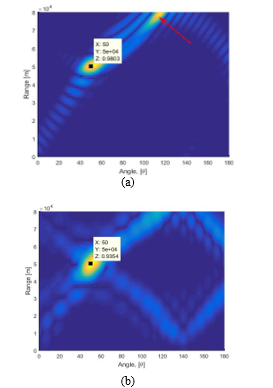

In Figure 5(a) and 5(b) both radars produce maxima at the intended range-angle pair, but the conventional FDA has more serious ambiguity problem shown by the arrow in Figure 5(a). It is important to mention that because the conventional FDA has larger total frequency offset, it achieved higher range resolution than the proposed method. In the case of the proposed method, the target is better localized than the conventional FDA. It can be noticed that there is no spread of beampattern in both range and angle dimensions.

Figure 4: Comparisons of transmit beampattern when the target is present at (θd,rd) = (50°,50 km): (a) Conventional FDA, (b) Proposed symmetrical FDA.

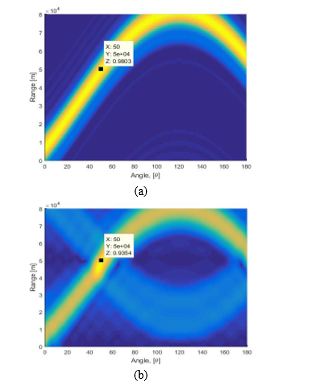

Figure 5: Comparisons of transmit beampattern when the target is present at (θd,rd) = (50°,50 km): (a) Conventional FDA, (b) Proposed symmetrical FDA.

Finally, SINR and probability detection performance of the proposed method and the conventional FDA have been plotted. It can be observed that in Figure 6, the SINR of proposed symmetrical FDA is better than the conventional FDA. Thus proposed method has better robustness against the interferences.

Figure 6: SINR versus SNR performance.

Figure 7 shows the detection probability versus SNR for the proposed method and the conventional FDA radar. Proposed method exhibits better detection performance compared to the conventional FDA radars.

Figure 7: Probability of detection versus SNR performance.

Note that the improvement in performance in terms of SINR and detection probability can be attributed to single maxima due to symmetrical frequency offset employed across the transmit antenna array.

6.       Conclusion

A symmetrical frequency offset based FDA has been presented. The proposed method avoids the periodic maxima presented in conventional FDA radar and focus the target with multiple beams to get single maxima for better target localization. Numerical results shows that the proposed method exhibits better robustness against interference as well as better detection performance than the conventional FDA radar due to the employment of symmetrical frequency offset across the transmit antenna array. Overall, the proposed method received beampattern show a reasonable improvement compared to the conventional FDA.
