1. Introduction

The massive data processing trends have brought to light several technologies and processing models in the Big Data Engineering field [1]. Among them, MapReduce [2] can be highlighted as it permits the analysis of large data based on the “divide and conquer” principle. These programs run two phases in a distributed infrastructure: the Mapper and the Reducer. The first one divides the problem into several subproblems, and then the Reducer phase solves each subproblem. Usually, MapReduce programs run on several computers with heterogeneous resources and features. This complex infrastructure is managed by a framework, such as Hadoop [3] which stands out due to its wide use in the industry [4]. Other frameworks as for example Apache Spark [5] and Apache Flink [6] among others also use the MapReduce programming model.

From point of view of the developer, a MapReduce program can be implemented only with Mapper and Reducer, regardless of the infrastructure. Then the framework that manages the infrastructure is also responsible to, over several computers, automatically deploy, run the program and lead the data processing between the input and output. Among others, the framework divides the input into several subsets of data, then processes each one in parallel and re-runs some parts of the program if necessary.

Although that the program can be implemented abstracting the infrastructure, the developer needs to consider how the infrastructure configuration could affect the program functionality. A previous work [7] detects and classifies several faults that depend on how the infrastructure configuration affects the program execution and produces different output. These faults are often masked during the test execution because the tests usually run over an infrastructure configuration without considering the different situations that could occur in production, as for example different parallelism levels or the infrastructure failures [8]. On the other hand, if the tests are executed in an environment similar to the production, some faults may not be detected because it is common that the test inputs contain few data, and in these cases Hadoop does not parallelize the program execution. There are some tools to enable the simulation for some of these situations (for example computer and net failures) [9, 10, 11], but it is difficult to design, generate and execute the tests in a deterministic way because there are a lot of elements that need fine grained simulation, including the infrastructure and framework.

The main contribution of this paper is a technique that can be used to generate automatically the different infrastructure configurations for a MapReduce application. The goal is to execute test cases with these configurations in order to detect functional faults. Given a test input data, the configurations are obtained based on the different executions that can happen in production. Then each one of the configurations is executed in the test environment in order to detect functional faults of the program that may occur in production. This paper extends the previous work [12] and the contributions are:

1. A combinatorial technique to generate the different infrastructure configurations, taking into account characteristics related to the MapReduce processing and the test input data.
2. Automatic support by means of a test engine based on MRUnit [13] that allows the execution of the infrastructure configurations.
3. Evaluation of the approach detecting failures in a two real world programs.

The rest of the paper is organized as follows. In Section 2 the principles of the MapReduce paradigm are introduced. The related work about software testing in MapReduce paradigm is presented in Section 3. The generation of the different configurations, the execution and the automatization of the tests are defined in Section 4. In Section 5 it is applied to a two case studies. The paper ends with conclusions and future work in Section 6.

2. MapReduce Paradigm

The function of the MapReduce program is to process high quantities of data in a distributed infrastructure. The developer implements two functionalities: Mapper task that splits the problem into several subproblems and Reducer task that solves these subproblems. The final output is obtained from the deployment and the execution over a distributed infrastructure of several instances of Mapper and Reducer, also called tasks. Hadoop (or other framework) automatically carry out the deployment and execution. First, several Mapper tasks analyse in parallel a subset of input data and determine which subproblems these data need. When the execution of all Mappers are finished, several Reducers are also executed in parallel in order to solve the subproblems. Internally MapReduce handles <key, value> pairs, where the key is the subproblem identifier and the value contains the information to solve it.

To explain MapReduce let us suppose a program that calculates the average temperature per year from historical data about temperatures. This program solves for each year one subproblem, so the year is the identifier or key. The Mapper task receives a subset of temperature data and emits <year, temperature of this year> pairs. Then Hadoop aggregates all values per key. Therefore, the Reducer tasks receive subproblems like <year, [all temperatures of this year]>, that is all temperatures grouped per year. Finally, the Reducer calculates the average temperature. For example, in Figure. 1 an execution of the program considering the input is detailed: year 2000 with 3º, 2002 with 4º, 2000 with 1º, and 2001 with 5º. The first two inputs are analysed in one Mapper task and the remainder in another task. Then the temperatures are grouped per year and sent to the Reducer tasks. The first Reducer receives all the temperatures for the years 2000 and 2002, and the other task for the year 2001. Finally, each Reducer emits the average temperature of the analysed subproblems: 2º in the year 2000, 4º in 2002 and 5º in 2001. This program with the same input could be executed in another way by the framework, for example with three Mappers and three Reducers. Regardless of how the framework runs the program, it should generate the expected output.

In order to optimize the program, a Combiner functionality can be implemented. This task is run after the Mapper and the goal is to remove the irrelevant <key, value> pairs to solve the subproblem. In MapReduce there are also other implementations such as for example Partitioner that decides for each <key, value> pair which Reducer analyses it, Sort that sorts the <key, value> pairs, and Group that aggregates the values of each key before the Reducer.

An incorrect implementation of these functionalities could cause a failure in one of the different ways in which Hadoop can run the program. These faults are difficult to detect during testing because the test cases usually contain few input data. In this way it is not necessary to split the inputs and therefore the execution is over one Mapper, one Combiner and one Reducer [2].

3. Related Work

Despite the testing challenges of the Big Data applications [14, 15] and the progresses in the testing techniques [16], little effort is focused on testing the MapReduce programs [17], one of the principal paradigms of Big Data [18]. These large-scale programs have several issues and challenges to measure and assure the quality [19]. A study of Kavulya et al. [20] analyses several MapReduce programs and 3% of them do not finish, while another study by Ren et al. [21] places the number between 1.38% and 33.11%.

Many of the works about testing of the MapReduce programs focus on performance [22, 23, 24] and to a lesser degree functionality. A testing approach for Big Data is proposed by Gudipati et al. [25] specifying several processes, one of which is about MapReduce validation. In this process Camargo et al. [26] and Morán et al. [7] identify and classify several functional faults. Some of these faults are specific of the MapReduce paradigm and they are not easy to detect because they depend on the program execution over the infrastructure. One common type of fault is produced when the data should reach the Reducer in a specific order, but the parallel execution causes these data to arrive disordered. This fault was analysed by Csallner et al. [27] and Chen et al. [28] using some testing techniques based on symbolic execution and model checking. In contrast to the previous works, the approach of this paper is not focused on the detection of only one type of fault, it can also detect other MapReduce specific faults. To do this, the test input data is executed over different infrastructure configurations that could lead to failures.

Several research lines suggest injecting infrastructure failures [29, 30] during the testing, and several tools support their injection [9, 10, 11]. For example, the work by Marynowski et al. [31] allows the creation of test cases specifying which computers fail

and when. One possible problem is that some specific MapReduce faults could not be detected by infrastructure failures, but require full control of Hadoop and the infrastructure. In this paper, the different ways in which Hadoop could run the program are automatically generated from the functional point of view, regardless of the infrastructure failures and Hadoop optimizations.

Furthermore, there are other approaches oriented to obtain the test input data of MapReduce programs, such as [32] that employs data flow testing, other based on a bacteriological algorithm [33], and [34] based on input domain together with combinatorial testing focused on ETL (Extract, Transformation and Load). In this paper, given a test input data, several configurations of infrastructure are generated and then executed in order to reveal functional faults. The test input data of this approach could be obtained with the previous testing techniques.

The functional tests can be executed directly in the production cluster or in one computer with Hadoop. Herriot [35] can be used to execute the tests in a cluster while providing access to their components supporting, among others, the injection of faults. Another option is to simulate a cluster in memory with the MiniClusters libraries [36]. In the unit testing, JUnit [37] could be used together with mock tools [38], or directly by MRUnit library [13] adapted to the MapReduce paradigm. These test engines only execute one infrastructure configuration and usually without parallelization. In this paper a test engine is implemented by an MRUnit extension that automatically generates and executes the different infrastructure configurations that could occur in production. The test engine proposed extends MRUnit because in Hadoop is very usual to develop java programs [21], and the java programs usually employs JUnit libraries [39]. MRUnit put together JUnit with mocks, reflection and other tools in order to simplify the execution of the test case for the MapReduce programs.

4. Generation and Execution of Tests

The generation of the infrastructure configurations for the tests are defined in Section 4.1, and a framework to execute the tests in Section 4.2.

4.1.  Generation of the test scenarios

To illustrate how the infrastructure configuration affects the program output, suppose that the example of Section 2 is extended with a Combiner in order to decrease the data and improve the performance. The Combiner receives several temperatures and then they are replaced by their average in the Combiner output. This program does not admit a Combiner because all the temperatures are needed to obtain the total average temperature. The Combiner is added in order to optimize the program, but injects a functional fault in the program. Figure. 2 represents three possible executions of this program with the same input (year 1999 with temperatures 4º, 2º and 3º) that could happen in production considering the different infrastructure configurations.

The first configuration executes one Mapper, one Combiner and one Reducer and produces the expected output. The second configuration also generates the expected output executing one Mapper that processes the temperatures 4º and 2º, another Mapper for 3º, two Combiner, and finally one Reducer. The third configuration also executes two Mapper, two Combiner and one Reducer, but produces an unexpected output because the first Mapper processes 4º and the second Mapper the temperatures 2º and 3º. Then one of the Combiner tasks calculates the average of 4º, and the other Combiner of 2º and 3º. The Reducer receives the previous averages (4º and 2.5º), and calculates the total average in the year. This configuration produces 3.25º as output instead of the 3º of the expected output. The program has a functional fault only detected in the third configuration. Whenever this infrastructure configuration is executed the failure is produced, regardless of the computer failures, slow net or others. This fault is difficult to reveal because the test case needs to be executed in a completely controlled way under the infrastructure configuration that detect it.

Given a test input data, the goal is to generate the different infrastructure configurations, also called in this context scenarios. For this purpose, the technique proposed considers how the MapReduce program can execute these input data in production. First, the program runs the Mappers, then over their outputs the Combiners and finally the Reducers. The execution can be carried out over a different number of computers and therefore the Mapper–Combiner–Reducer can analyse a different subset of data in each execution. In order to generate each one of the scenarios, a combinatorial technique [40] is proposed to combine the values of the different parameters that can modify the execution of the MapReduce program. In this work the following parameters are considered based on previous work [7] that classifies different types of faults of the MapReduce applications:

• Mapper parameters: (1) Number of Mapper tasks, (2) Inputs processed per each Mapper, and (3) Data processing order of the inputs, that is, which data are processed before other data in the Mapper and which data are processed after.
• Combiner parameters for each Mapper output: (1) Number of Combiner tasks, and (2) Inputs processed per each Combiner.
• Reducer parameters: (1) Number of Reducer tasks, and (2) Inputs processed per each Reducer.

The different scenarios are obtained through the combination of all values that can take the above parameters and applying the constraints imposed by the sequential execution of MapReduce. The constraints considered in this paper are the following:

1. The values/combinations of the Mapper parameters depend on the input data because it is not possible more tasks than data. For example, if there are three data items in the input, the maximum number of Mappers is three.
2. The values/combinations of the Combiner parameters depend on the output of the Mapper
3. The values/combinations of the Reducer parameters depend on the output of the Mapper–Combiner tasks and another functionality executed by Hadoop before Reducer This other functionality is called Shuffle and for each <key, value> pair determines the Reducer task that requires these data, then sorts all the data and aggregates by key.

Suppose the program of Figure. 2 to illustrate how the parameters are combined and how the constraints are applied. The input of this program contains three records, and these data constrain the values that the Mapper parameters can take because the maximum number of Mapper tasks is three (one Mapper per each <key, value> pair). The first scenario is generated with one Mapper, one Combiner and one Reducer. For the second scenario

the parameter “Number of Mapper tasks” is modified to 2, where the first Mapper analyses two <key, value> pairs, and the second processes one pair. The third scenario maintains the parameter “Number of Mapper tasks” at 2, but modifies the parameter “Inputs processed per each Mapper”, so the first Mapper analyses one <key, value> pair and the other Mapper processes two pairs. The scenarios are generated by the modification of the values in the parameters in this way and considering the constraint.

4.2  Execution of the test scenarios

The testing technique proposed in the previous section is focused in the generation of scenarios that represent different infrastructure configurations according to the characteristics of the MapReduce processing. The test cases are systematically executed in these scenarios according to the framework described in Figure. 2.

The framework takes as input a test case that contains the input data and optionally the expected output. The test input data can be obtained with a generic testing technique or one specifically designed for MapReduce, such as MRFlow [32]. Then, the ideal scenario is generated (1) and executed (2, 3). This is the scenario formed by one Mapper, one Combiner and one Reducer which is the usual configuration executed in testing. Next, new scenarios are iteratively generated (4) and executed (5) through the technique of the previous section. The output of each scenario is checked against the output of the ideal scenario (6), revealing a fault if the outputs are not equivalent (7). Finally, if the test case contains the expected output, the output of ideal scenario is also checked against the expected output (8), detecting a fault when both are not equivalent (9, 10).

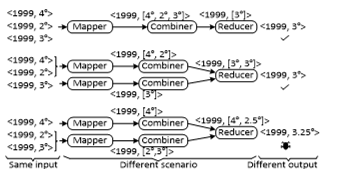

Figure. 3 Different infrastructure configurations for a program that calculates the average temperature per year with Combiner task

Given a test case, the scenarios are generated according to the previous section, then they are iteratively executed and evaluated following the following pseudocode:

Input: Test case with:

input data

expected output (optional)

Output: scenario that reveals a fault

(0)  /* Generation of scenarios (section 4.1)*/

(1)  Scenarios ← Generate scenarios from input data

(2)  /* Execution of scenarios */

(3)  ideal scenario output ← Execution of ideal

scenario

(4)  ∀ scenario ∈ Scenarios:

(5)    scenario output ← Execution of scenario

(6)    IF scenario output <> ideal scenario output:

(7)     RETURN scenario with fault

(8)  IF ideal scenario output <> expected output:

(9)    RETURN ideal scenario

(10) ELSE:

(11)   RETURN Zero faults detected

For example, Figure. 2 contains the generation and execution of a program that calculates the average temperature per year in three scenarios considering the same test input: year 1999 with temperatures 4º, 2º and 3º. The first execution is the ideal scenario that produces 3º as output through one Mapper, one Combiner and one Reducer. Then the second scenario that contains two Mappers and two Combiners is executed and also produces 3º. Finally, a third scenario with two Mappers and two Combiners is executed, but with different information in the Mappers than the second scenario, and produces 3.25º as output. This temperature is not equivalent to the 3º of the ideal scenario output. Consequently, a functional fault is revealed without any knowledge of the expected output of the test case.

This approach is automatized by means of a test engine based on MRUnit library [13]. This library is used to support the execution of each scenario. In MRUnit the test cases are executed in the ideal scenario, but this library is extended to generate other scenarios and enable parallelism. In order to support the execution of several Mapper, Combiner and Reducer tasks, MRUnit is extended providing support for advanced functionalities as for example customized Partitioners.

5. Case Studies

The following two real world programs are used as case studies in order to evaluate the proposed approach: (1) the Open Ankus recommendation system [41], and (2) the MapReduce program described in I8K|DQ-BigData framework [42]. Each case study is detailed in the below sections.

5.1.  Open Ankus recommendation system

This recommendation system is part of a machine learning library implemented in the MapReduce paradigm. The system predicts and recommends several items (books, films or others) to each user based on the personal tastes saved in the profile. One functionality checks the accuracy of the recommendations based on the points predicted by the systems against points assigned by the users for each item. This functionality has a MultipeInputs [43] design that consists in two different Mapper implementations: one receives the points predicted by the system and the other the points assigned by the user, but both Mappers emit data to the same Reducer implementation. The Mappers tasks receive from all users and all items the points predicted and the points assigned, and then the Mapper aggregates these points for each user-item pair. The

Reducer tasks receive for each user-item all points predicted by the system and all points assigned by the user, and then calculate the accuracy of the predictions.

For this program a test case is obtained using the MRFlow testing technique based on data flow adaptation to the MapReduce programs [7]. The test input data contain two predictions and two user assignments for one item: (1) the system predicts that Carol could assign 0 points to Don Quixote item, (2) Carol assigns 0 points to Don Quixote, (3) later the system detects a change in the Carol taste and predicts that Carol could assign 10 points to Don Quixote, and (4) Carol assigns 10 points to Don Quixote. These data are passed to the test engine saved in two files, one for predictions and other for assignments. The expected output is 100% of accuracy in the predictions.

The procedure described in Section 4 is applied on the previous program using the previous test case as input. As a result, a fault is detected and causes a failure when some inputs are processed before others. In this case, the program should check the points assigned by the user against their predictions, but could check it against other predictions and then a wrong accuracy could be obtained. In the previous test case, a failure occurs when the system checks the prediction 0 against the 10 points assigned by the user instead to check against the 0 points assigned by the user. The bottom of Figure. 4 represents one scenario that reveals the failure. This scenario starts with one Mapper to analyse the predictions and other two Mappers for the points assigned, 0 and 10 respectively. In this scenario the 10 points assigned by the user are analysed before the 0 points also assigned by the user. The Reducer task receives several points predicted and assigned by the user, and then checks the first prediction against the first points assigned by the user, and so on. In this scenario the Reducer task receives: (1) the predictions 0 and 10 points, and (2) the points assigned by the user, 10 and 0. This Reducer task generates a wrong accuracy because checks the 0 points predicted against the 10 points assigned by the user instead the 0 points. As output, the system did not predict well, but given the test input data the system should have predicted perfectly.

The testing technique proposed in this paper detects the fault with the previous test case. However, the following test environments do not detect the fault: (a) Hadoop cluster in production with 4 computers, Hadoop in local mode (simple version of Hadoop with one computer), and (c) MRUnit unit testing library. These environments mask the fault because only execute the test cases in one scenario represented in the top of Figure. 4. This scenario is the ideal scenario with only two Mappers due a MultipleInputs design of the program: one for predictions and other for points assigned by user. In the ideal scenario there is no parallelization for predictions and points assigned by user, then the fault is masked.

The test engine proposed in this paper detects the fault because executes the test case in several scenarios that could happen in production. In contrast with the other environments, this test engine does not need the expected output to reveal the fault. At first point, the test engine obtains the output from the ideal scenario and then checks if the other scenario produces an equivalent output or not. For example, in the previous test case, for the same input some scenarios produce one output (the system predictions are perfect) and other scenarios produce different output (the system predictions are wrong).

5.2.  18K|DQ-BigData framework

This program measures the quality of the data exchanged between organizations according to part 140 of the ISO/TS 8000 [44]. The program receives (1) the data exchanged in a row-column fashion, together with (2) a set of mandatory columns that should contain data and (3) a percentage threshold that divides the data quality of each row in two parts: the first part is maximum if all mandatory columns contain data and zero otherwise, and the second part of the data quality is calculated as the percentage of the non-mandatory columns that contain data. The output of the program is the data quality of each row, and the average of all rows.

Over the previous program, a test case is obtained using again a specific MapReduce testing technique based on data flow [7]. The test input data and the expected output of the test case contain two rows represented in Table. 1. Row 1 contains two columns (Name and City), and only one column has data, so the data quality is 50%. Row 2 contains data in all columns, so the data quality is 100%. The total quality is 75%, which is the average of both rows.

Input		Expected output
Data quality threshold: 50%
Mandatory columns: “Name”
Row 1	Name: Alice	50%	75% (Average)
	City: (no data)
Row 2	Name: Bob	100%
	City: Vienna

Table. 1 TEST CASE OF THE I8K|DQ-BIGDATA PROGRAM

The procedure described in Section 4 is applied on the previous program using the previous test case as input. As a result, a fault is detected and reported to the developer. This failure occurs when the rows are processed in different Mappers and only the first Mapper receives the information related to the mandatory columns and the data quality threshold, because Hadoop splits the input data into several subsets. Without this information, the Mapper cannot calculate the data quality and does not emit any output. The bottom of Figure. 5 represents the scenario that produces the failure. There are two Mappers that process different rows. The first Mapper receives the data quality threshold (value of 50%), the mandatory column (“Name”) and the two columns of row 1 with only data in one column, so the Mapper emits 50% as data quality of row 1. The second Mapper processes only row 2, but no other information about the mandatory columns or data quality threshold, so this Mapper cannot emit any output. Then the Reducer receives only the data quality of row 1 and emits an incorrect output of the average data quality.

This fault is difficult to detect because it implies the parallel and controlled execution of the program. Moreover, this fault is not revealed by the execution of the test case in the following environments: (a) Hadoop cluster in production with 4 computers, Hadoop in local mode (simple version of Hadoop with one computer), and (c) MRUnit unit testing library. These environments do not detect the fault because they only execute one scenario that masks the fault. Normally these environments run the program in the ideal scenario that is formed by one Mapper, one Combiner and one Reducer, and then the fault is masked due to a lack of parallelism.

The test engine proposed in this paper executes the test case in the different scenarios that can occur in production with large data and infrastructure failures. In contrast with the other environments, the test engine proposed does not need the expected output to detect faults. For example, in this case study the fault is revealed automatically because the outputs of the different scenarios are not equivalent to each other. The execution of some scenarios obtains an average quality of 75%, whereas the execution of other scenarios obtains 50%. These outputs are not equivalent, and the test engine detects automatically a fault despite the unknown expected output.

After the detection and report of the fault during the test phase, the developer fixed the program and then the test case passed.

6. Conclusions

A testing technique for MapReduce applications is described and automatized as a test engine that generates and executes different infrastructure configurations for a given test case. This test engine can detect automatically functional faults related to the MapReduce paradigm without the expected output. In general, these design faults are difficult to detect in test/production environments because the execution is performed without parallelization or infrastructure failures. This testing technique is applied in test cases with little data in two real world programs. As a result, functional faults are revealed automatically.

As future work the generation of the infrastructure configurations could be improved by the extension of the testing technique in order to select efficiently the configurations that are more likely to detect faults. The current approach is off-line because the tests are not carried out when the program is in production. As future work we plan to extend the approach to on-line testing, in order to monitor the functionality with the real data when the program is executed in production and detect the faults automatically.

Conflict of Interest

The authors declare no conflict of interest.

Acknowledgment

This work was supported in part by PERTEST (TIN2013-46928-C3-1-R), project funded by the Spanish Ministry of Science and Technology; TESTEAMOS (TIN2016-76956-C3-1-R) and SEQUOIA (TIN2015-63502-C3-1-R), projects funded by the Spanish Ministry of Economy and Competitiveness; GRUPIN14-007, funded by the Principality of Asturias (Spain); CIEN LPS-BIGGER project; and ERDF funds.

1. ISO/IEC JTC 1 – Big Data, preliminary report 2014, ISO/IEC Std., 2015.
2. J. Dean and S. Ghemawat, “MapReduce: Simplified Data Processing on Large Clusters,” in Proc. of the OSDI – Symp. on Operating Systems Design and Implementation. USENIX, 2004, pp. 137–149.
3. Apache Hadoop: open-source software for reliable, scalable, distributed computing, https://­hadoop.apache.org, accessed: 2017-01-16.
4. Institutions that are using Apache Hadoop for educational or production uses, http://­wiki.apache.org/­hadoop/­PoweredBy, accessed: 2017-01-16.
5. Apache Spark: a fast and general engine for large-scale data processing, https://­spark.apache.org, accessed: 2017-01-16.
6. Apache Flink: Scalable batch and stream data processing, https://­flink.apache.org/­, accessed: 2017-01-16.
7. J. Morán, C. de la Riva, and J. Tuya, “MRTree: Functional Testing Based on MapReduce’s Execution Behaviour,” in Future Internet of Things and Cloud (FiCloud), 2014 International Conference on, 2014, pp. 379–384.
8. K. V. Vishwanath and N. Nagappan, “Characterizing cloud computing hardware reliability,” in Proceedings of the 1st ACM symposium on Cloud computing. ACM, 2010, pp. 193–204.
9. AnarchyApe: Fault injection tool for hadoop cluster from yahoo anarchyape, https://­github.com/­david78k/­anarchyape, accessed: 2017-01-16.
10. Chaos Monkey, https://­github.com/­Netflix/­SimianArmy/­wiki/­Chaos-Monkey, accessed: 2017-01-16.
11. Hadoop injection framework, https://­hadoop.apache.org, accessed: 2017-01-16.
12. J. Moran, B. Rivas, C. De La Riva, J. Tuya, I. Caballero, and M. Serrano, “Infrastructure-aware functional testing of mapreduce programs,” 2016 IEEE 4th International Conference on Future Internet of Things and Cloud Workshops (FiCloudW), Aug 2016. [Online]. Available: http://­dx.doi.org/­10.1109/­W-FiCloud.2016.45
13. Apache MRUnit: Java library that helps developers unit test Apache Hadoop map reduce jobs, http://­mrunit.apache.org, accessed: 2017-01-16.
14. S. Nachiyappan and S. Justus, “Getting ready for bigdata testing: A practitioner’s perception,” in Computing, Communications and Networking Technologies (ICCCNT), 2013 Fourth International Conference on. IEEE, 2013, pp. 1–5.
15. A. Mittal, “Trustworthiness of big data,” International Journal of Computer Applications, vol. 80, no. 9, 2013.
16. A. Bertolino, “Software testing research: Achievements, challenges, dreams,” in Future of Software Engineering, 2007. FOSE ’07, 2007, pp. 85–103.
17. L. C. Camargo and S. R. Vergilio, “Mapreduce program testing: a systematic mapping study,” in Chilean Computer Science Society (SCCC), 32nd International Conference of the Computation, 2013.
18. M. Sharma, N. Hasteer, A. Tuli, and A. Bansal, “Investigating the inclinations of research and practices in hadoop: A systematic review,” confluence The Next Generation Information Technology Summit (Confluence), 2014 5th International Conference -.
19.  J. Merino, I. Caballero, B. Rivas, M. Serrano, and M. Piattini, “A data quality in use model for big data,” Future Generation Computer Systems, 2015.
20. S. Kavulya, J. Tan, R. Gandhi, and P. Narasimhan, “An analysis of traces from a production mapreduce cluster,” in Cluster, Cloud and Grid Computing (CCGrid), 2010 10th IEEE/ACM International Conference on. IEEE, 2010, pp. 94–103.
21. K. Ren, Y. Kwon, M. Balazinska, and B. Howe, “Hadoop’s adolescence: an analysis of hadoop usage in scientific workloads,” Proceedings of the VLDB Endowment, vol. 6, no. 10, pp. 853–864, 2013.
22. M. Ishii, J. Han, and H. Makino, “Design and performance evaluation for hadoop clusters on virtualized environment,” in Information Networking (ICOIN), 2013 International Conference on, 2013, pp. 244–249. [Online]. Available: http://­ieeexplore.ieee.org/­stamp/­stamp.jsp?arnumber=6496384
23. Z. Liu, “Research of performance test technology for big data applications,” in Information and Automation (ICIA), 2014 IEEE International Conference on. IEEE, 2014, pp. 53–58.
24. G. Song, Z. Meng, F. Huet, F. Magoules, L. Yu, and X. Lin, “A hadoop mapreduce performance prediction method,” in High Performance Computing and Communications & 2013 IEEE International Conference on Embedded and Ubiquitous Computing (HPCC_EUC), 2013 IEEE 10th International Conference on, 2013, pp. 820–825. [Online]. Available: http://­ieeexplore.ieee.org/­stamp/­stamp.jsp?arnumber=6832000
25. M. Gudipati, S. Rao, N. D. Mohan, and N. K. Gajja, “Big data: Testing approach to overcome quality challenges,” Big Data: Challenges and Opportunities, pp. 65–72, 2013.
26. L. C. Camargo and S. R. Vergilio, “Cassicação de defeitos para programas mapreduce: resultados de um estudo empírico,” in SAST – 7th Brazilian Workshop on Systematic and Automated Software Testing, 2013.
27. C. Csallner, L. Fegaras, and C. Li, “New ideas track: testing mapreduce-style programs,” in Proceedings of the 19th ACM SIGSOFT symposium and the 13th European conference on Foundations of software engineering. ACM, 2011, pp. 504–507.
28. Y.-F. Chen, C.-D. Hong, N. Sinha, and B.-Y. Wang, “Commutativity of reducers,” in Tools and Algorithms for the Construction and Analysis of Systems. Springer, 2015, pp. 131–146.
29. F. Faghri, S. Bazarbayev, M. Overholt, R. Farivar, R. H. Campbell, and W. H. Sanders, “Failure scenario as a service (fsaas) for hadoop clusters,” in Proceedings of the Workshop on Secure and Dependable Middleware for Cloud Monitoring and Management. ACM, 2012, p. 5.
30. P. Joshi, H. S. Gunawi, and K. Sen, “Prefail: A programmable tool for multiple-failure injection,” in ACM SIGPLAN Notices, vol. 46, no. 10. ACM, 2011, pp. 171–188.
31.  J. E. Marynowski, A. O. Santin, and A. R. Pimentel, “Method for testing the fault tolerance of mapreduce frameworks,” Computer Networks, vol. 86, pp. 1–13, 2015.
32. J. Morán, C. de la Riva, and J. Tuya, “Testing Data Transformations in MapReduce Programs,” in Proceedings of the 6th International Workshop on Automating Test Case Design, Selection and Evaluation, ser. A-TEST 2015. New York, NY, USA: ACM, 2015, pp. 20–25.
33. A. J. Mattos, “Test data generation for testing mapreduce systems,” in Master’s degree dissertation, 2011.
34. N. Li, Y. Lei, H. R. Khan, J. Liu, and Y. Guo, “Applying combinatorial test data generation to big data applications,” Proceedings of the 31st IEEE/ACM International Conference on Automated Software Engineering – ASE 2016, 2016. [Online]. Available: http://­dx.doi.org/­10.1145/­2970276.2970325
35. Herriot: Large-scale automated test framework, https://­wiki.apache.org/­hadoop/­HowToUseSystemTestFramework, accessed: 2017-01-16.
36. Minicluster: Apache Hadoop cluster in memory for testing, https://­hadoop.apache.org/­docs/­stable/­hadoop-project-dist/­hadoop-common/­CLIMiniCluster.html, accessed: 2017-01-16.
37. JUnit: a simple framework to write repeatable tests, http://­junit.org/­, accessed: 2017-01-16.
38. Mockito: Tasty mocking framework for unit tests in java, http://­mockito.org/­, accessed: 2017-01-16.
39. D. Qiu, B. Li, and H. Leung, “Understanding the api usage in java,” Information and Software Technology, vol. 73, pp. 81–100, 2016.
40. M. Grindal, J. Offutt, and S. F. Andler, “Combination testing strategies: a survey,” Software Testing, Verification and Reliability, vol. 15, no. 3, pp. 167–199, 2005.
41. Open Ankus: Data mining and machine learning based on mapreduce, http://­www.openankus.org/­, accessed: 2017-01-16.
42. B. Rivas, J. Merino, M. Serrano, I. Caballero, and M. Piattini, “I8k| dq-bigdata: I8k architecture extension for data quality in big data,” in Advances in Conceptual Modeling. Springer, 2015, pp. 164–172.
43. Multipleinputs: library to support mapreduce jobs that have multiple input paths with a different inputformat and mapper for each path, https://­hadoop.apache.org/­docs/­current/­api/­org/­apache/­hadoop/­mapred/­lib/­MultipleInputs.html, accessed: 2017-01-16.
44. ISO/TS 8000-140, Data quality – Part 140: Master data: Exchange of characteristic data: Completeness, ISO/TS Std., 2009.
